NVS
Elbit Gen-3 PVS-14
Couldn't load pickup availability
Click here for hand select

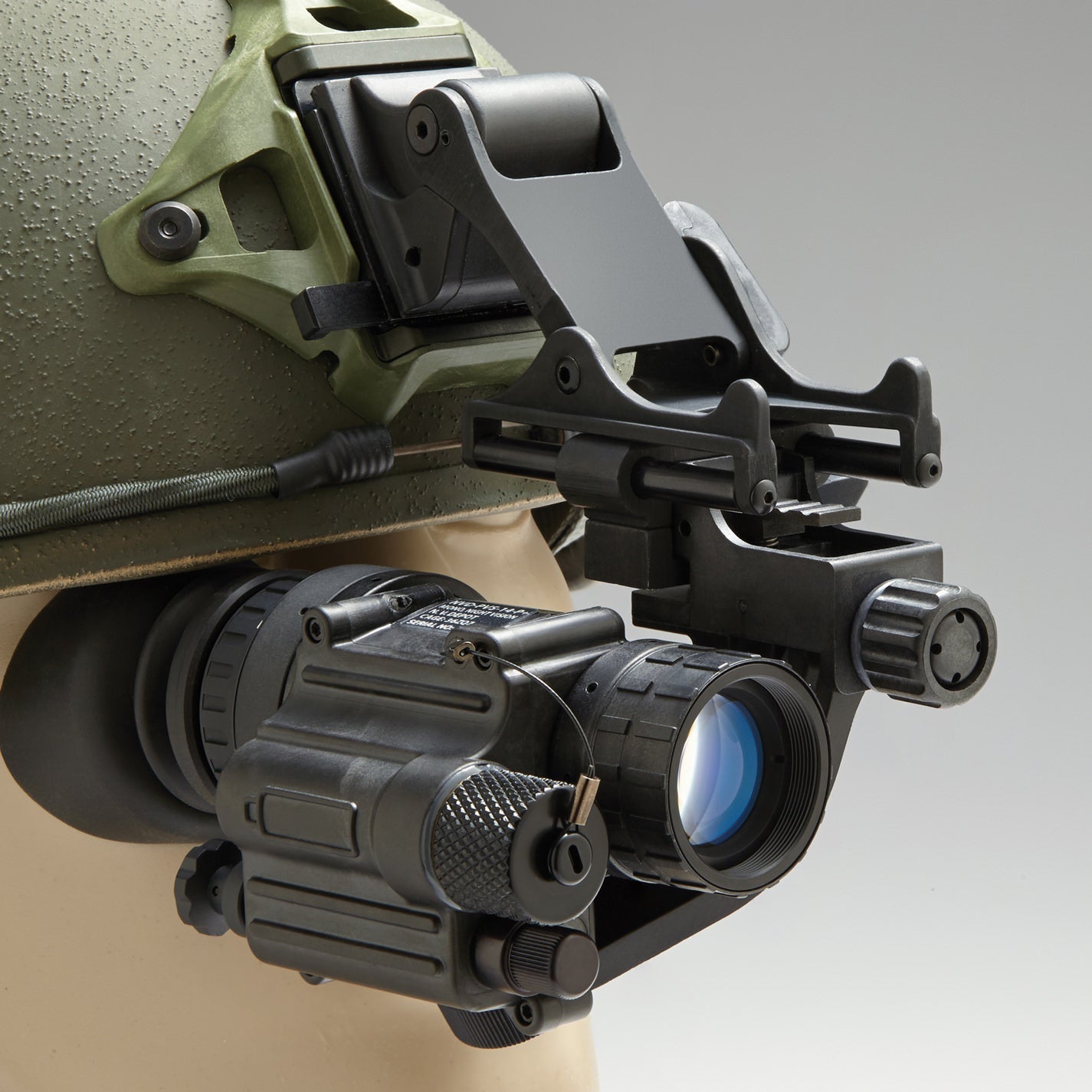

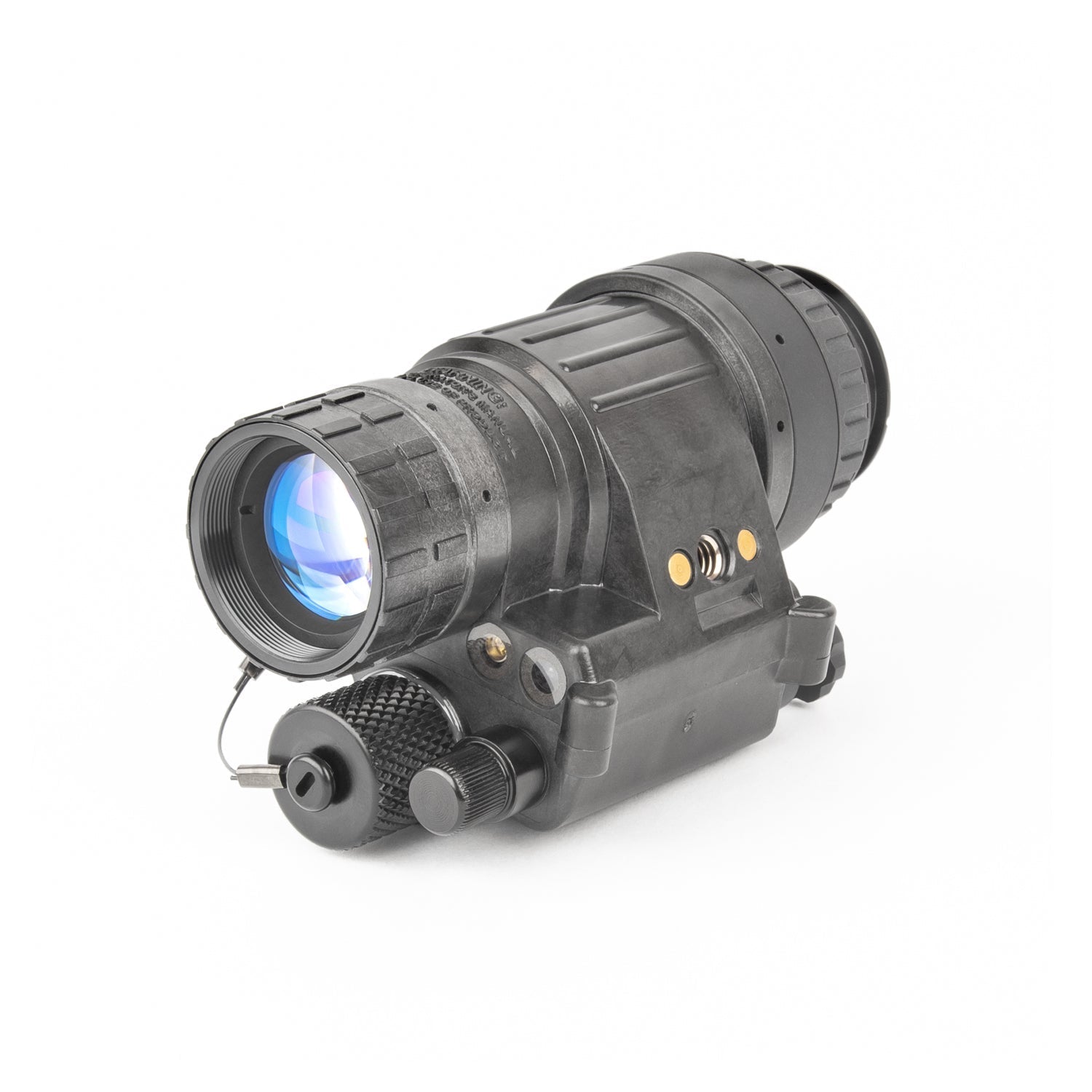

The PVS-14 is the current standard issued night vision device of the US military. Versatile, compact, and durable. PVS-14 allows the user to retain their night-adapted vision in one eye while viewing their surroundings through the illuminated eyepiece of the PVS-14. The PVS-14 offers night vision capabilities to the user at a great value.
Image intesifier Tube
Elbit XLSH or SLH Gen III image intensifier tube. The XLSH or SLH tube is thin-filmed and auto-gated. The customer is able to choose green or white phosphor and minimum FOM requirements.
XLSH minimum specs
- Center Resolution: 64 (norm 64-72)
- EBI (max): 2.5 (norm ~1.5)
- Halo (max): 1.25 (norm ~0.7)
| Zone | 1 | 2 | 3 |
|
.012-.015 |
0 | 0 | 0 |
|
.009-.012 |
0 | 1 | 1 |
| .006-.009 | 0 | 1 | 2 |
| .003-.006 | 1 | 2 | 3 |
Norm: 1 spot
SLH minimum specs
- Center Resolution: 64 (norm 64-72)
- EBI (max): 2.5 (norm ~1.5)
- Halo (max): 1.25 (norm ~0.7)
| Zone | 1 | 2 | 3 |
|
.012-.015 |
0 | 0 | 0 |
|
.009-.012 |
0 | 0 | 0 |
| .006-.009 | 0 | 0 | 1 |
| .003-.006 | 0 | 2 | 2 |
Norm: 0 or 1 spot
Features
- 10 Year Manufacturer Warranty
- Adjustable gain
- Autogated
- Thin-filmed
- Low Battery Indicator
- Waterproof
- Nitrogen Purged
- Quality mil-spec multi-coated lens
- Mil-Spec housing and electronics
Specs
Field of View: 40˚
Magnification: one power (1X)
Eye Relief: 25mm
Objective Lens: 27mm, f/1.2
Focus Range: 25cm to infinity
Power Source: 1 AA-Size Battery
Weight (w/o batteries): 10.8 ounces (307 G)
Size: 4.5"L x 2.5"W x 2.75"H
Standard Accessories: Soft Carry Case, Operator’s Manual, AA Batteries, Demist Shield, Sacrificial Filter for Objective Lens, Neck Cord, Eye-Cup, and Light Filter Cap.
10 Year Warranty
