PVS-14 L3Harris Unfilmed SuperGain WP | Hand Select

Add a J-arm

In Stock Ready to ship

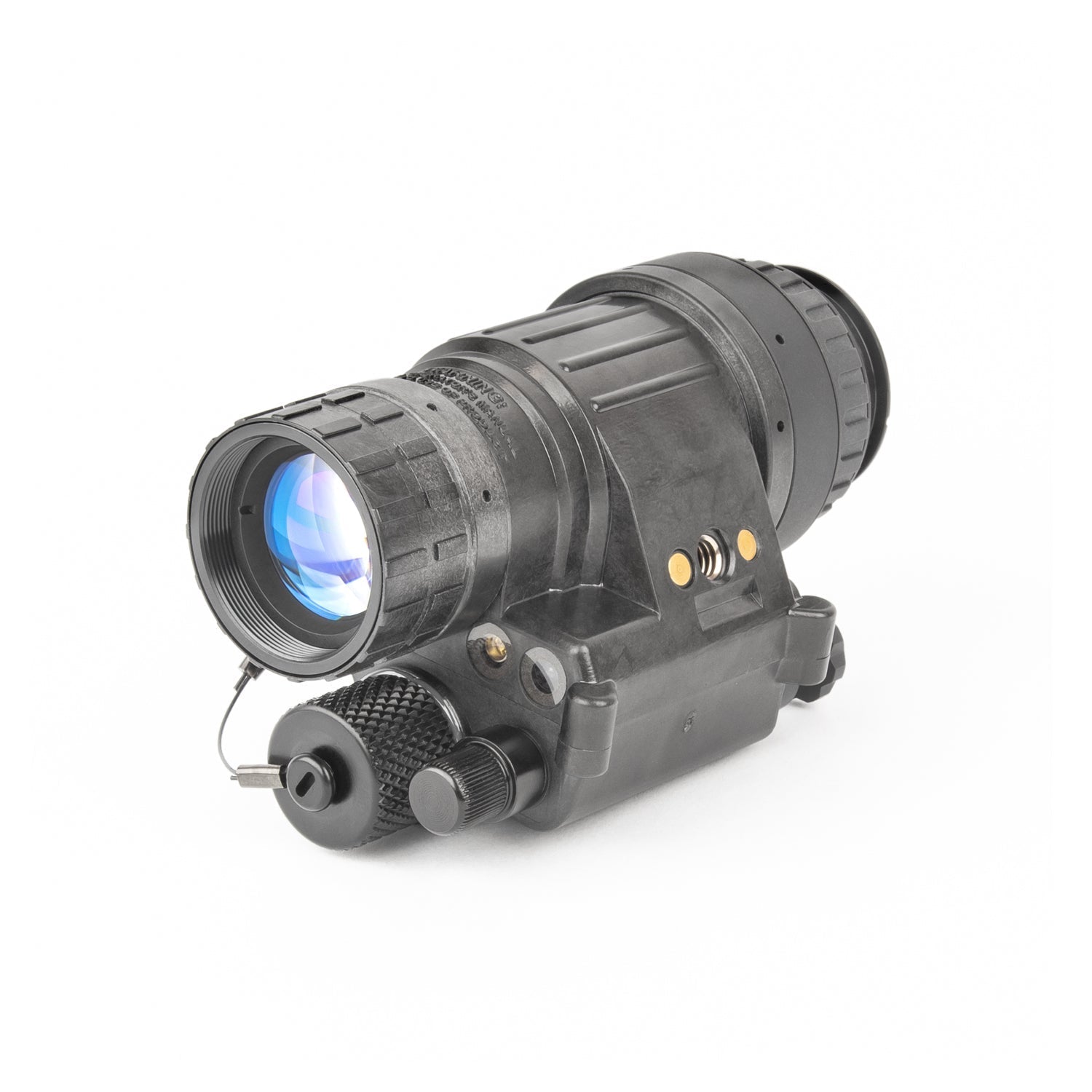

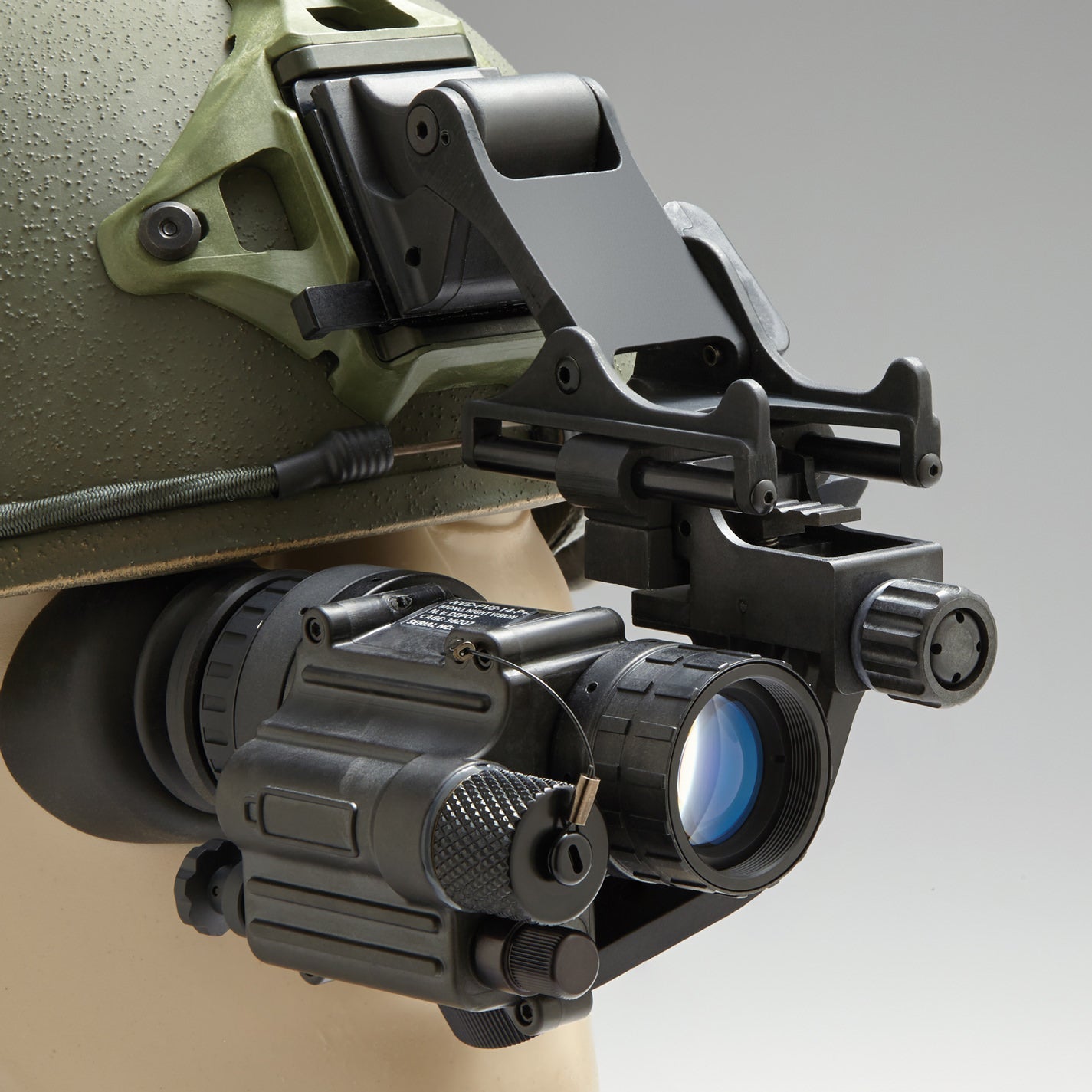

The PVS-14 is the current standard issued night vision device of the US military. Versatile, compact, and durable. PVS-14 allows the user to retain their night-adapted vision in one eye while viewing their surroundings through the illuminated eyepiece of the PVS-14. The PVS-14 offers night vision capabilities to the user at a great value.

Spec Key

• SNR = Signal to noise ratio
• RES = Resolution (lp/mm)
• EBI = Equivalent Background Illumination
• Halo = Halo (mm)
• LG = Luminous Gain (2x10-6 fc K)
• PS = Photocathode Sensitivity (2856K)
• FOM = Figure of Merit (Resolution * SNR)

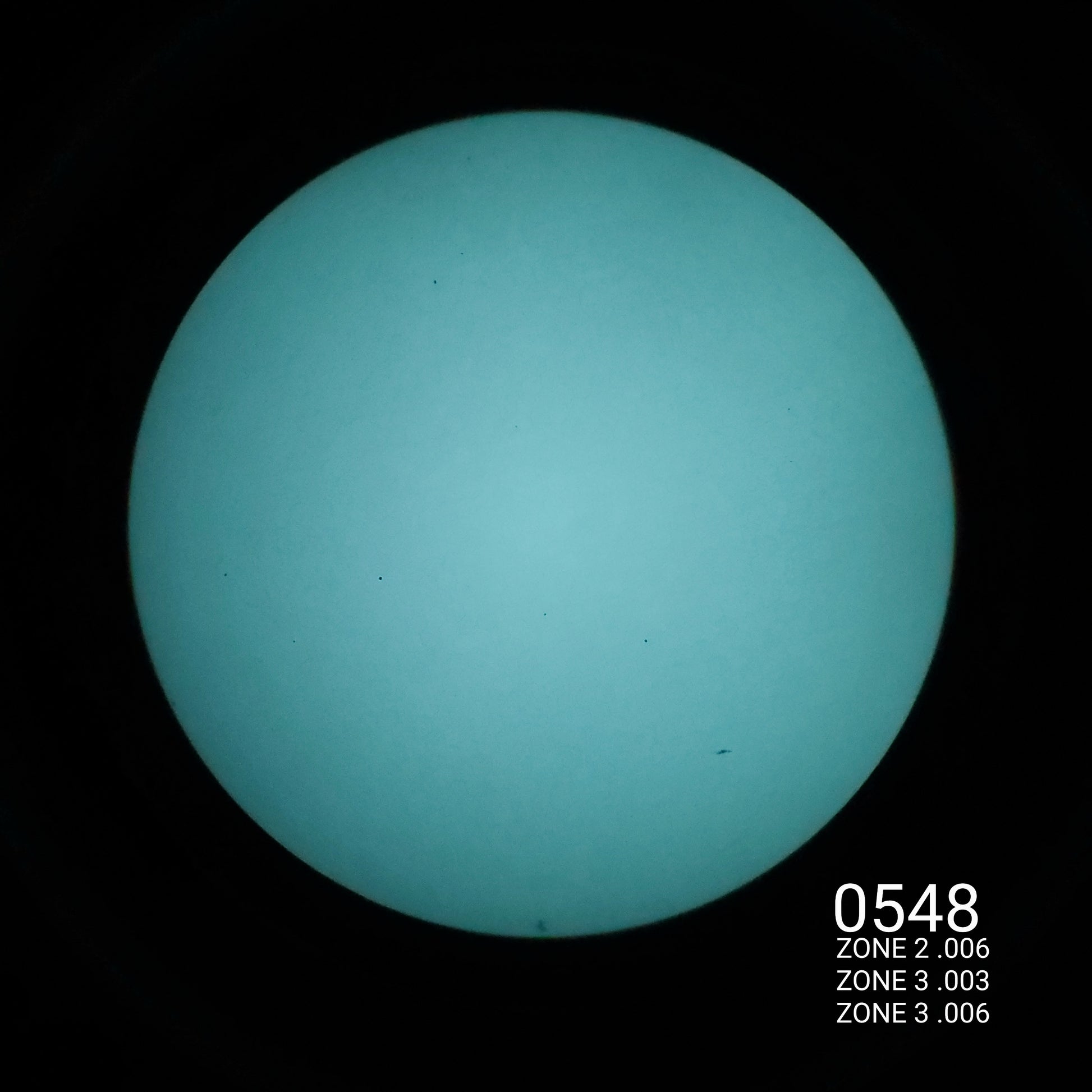

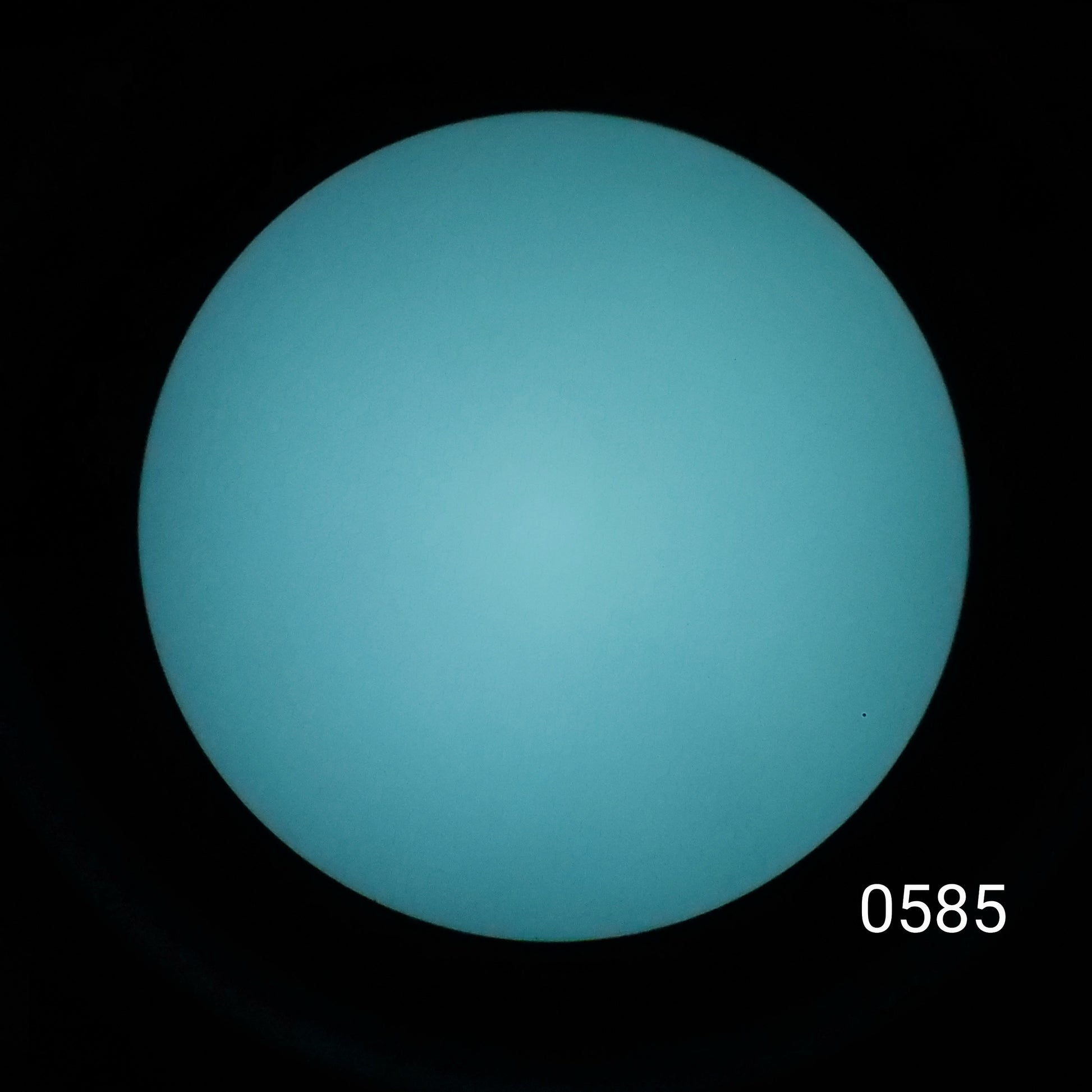

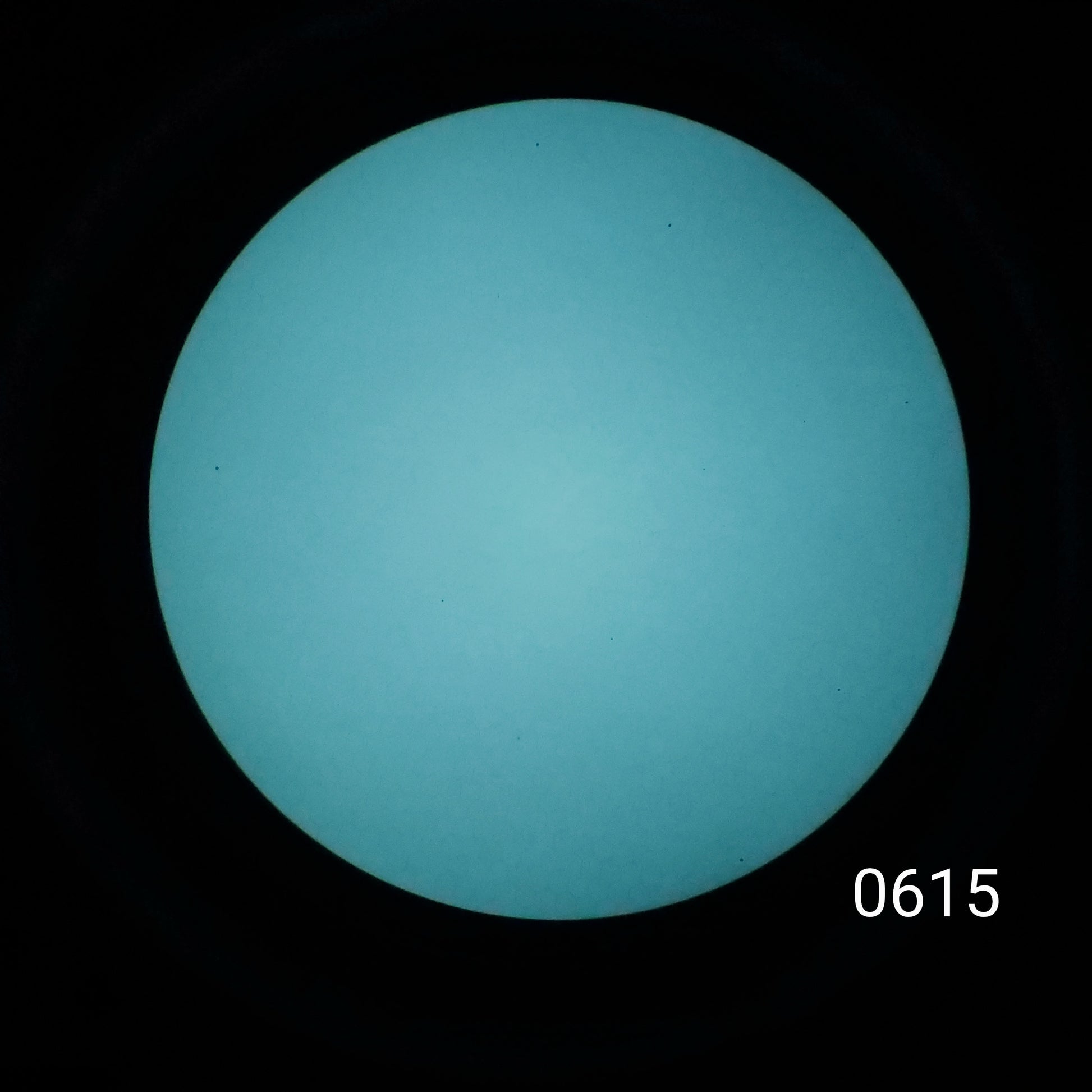

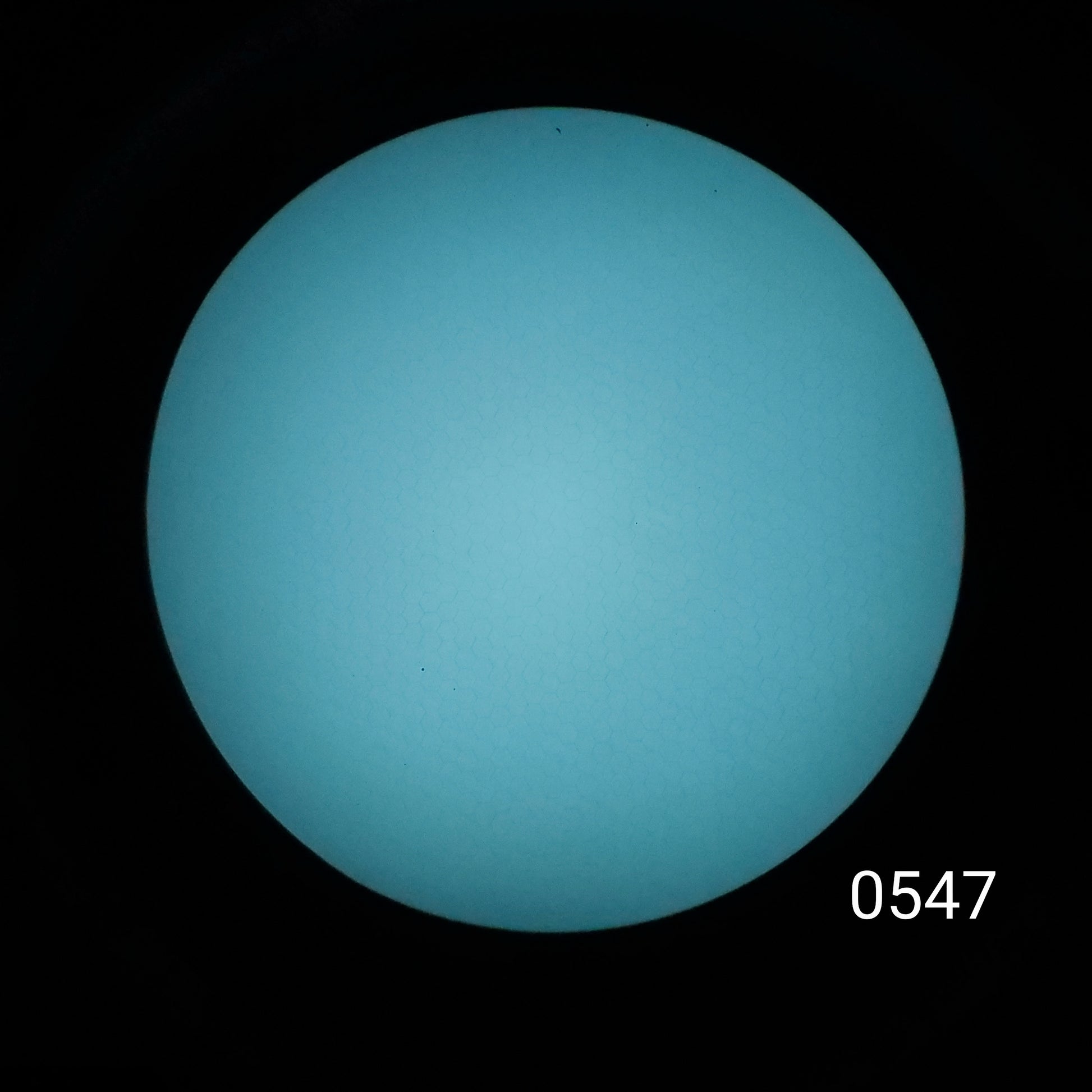

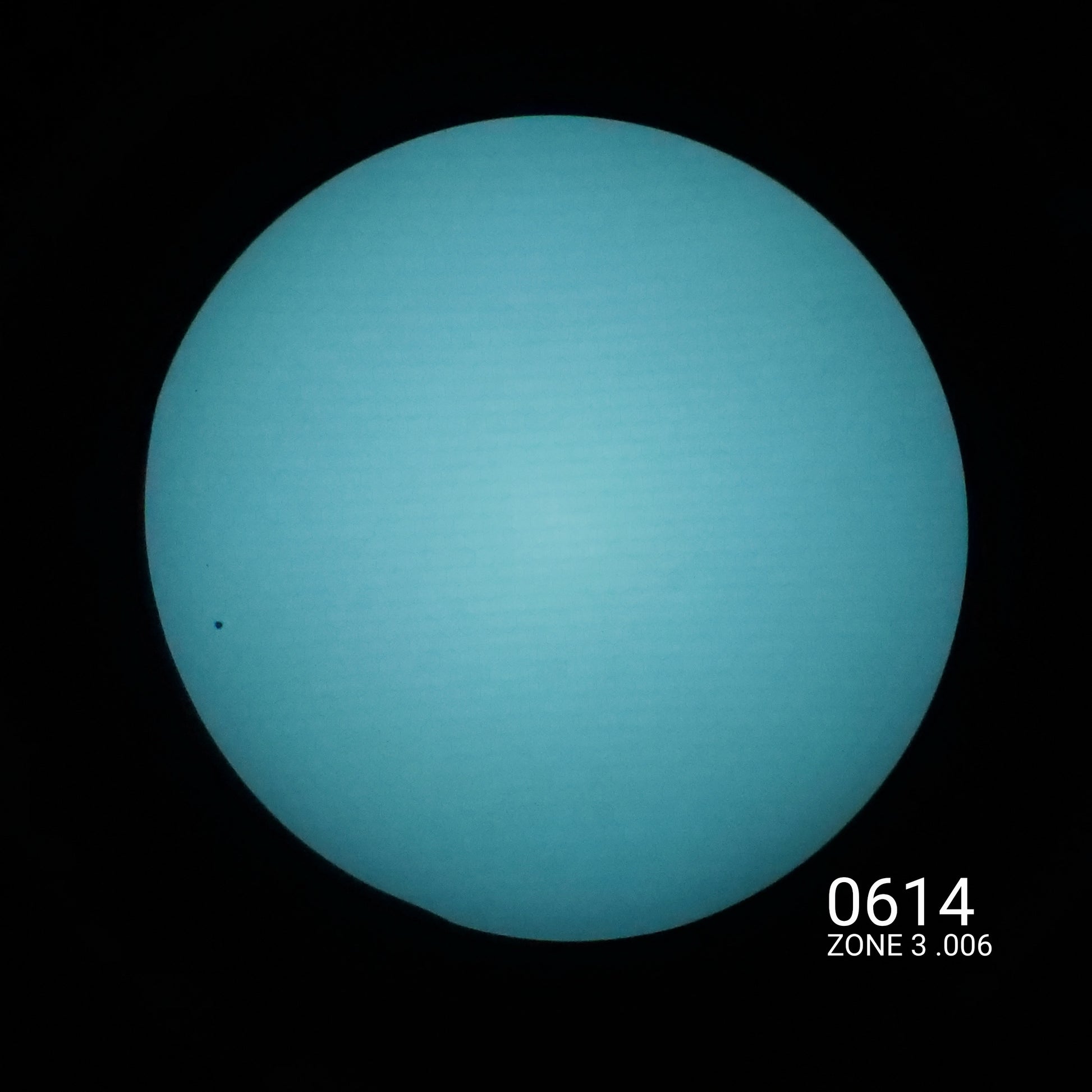

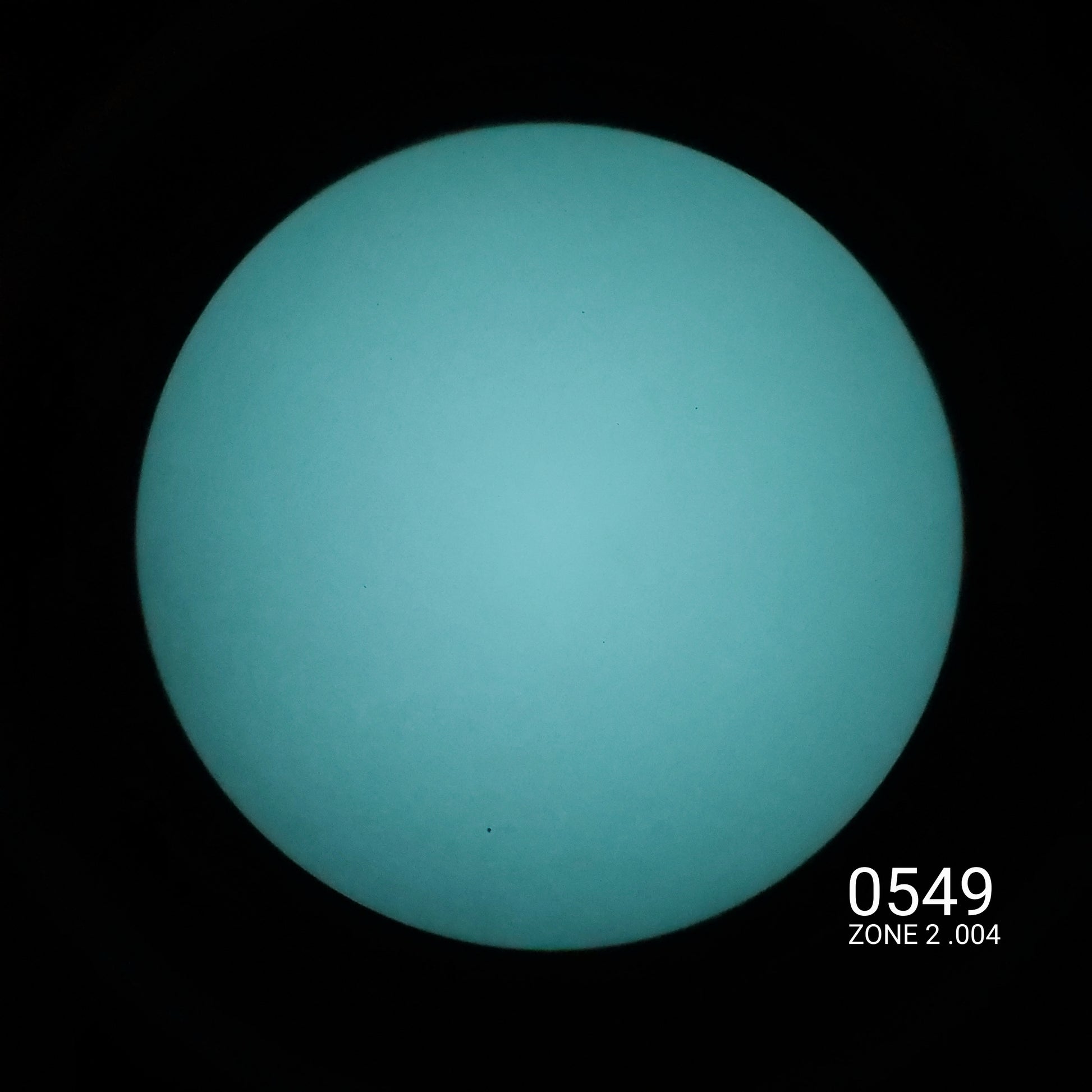

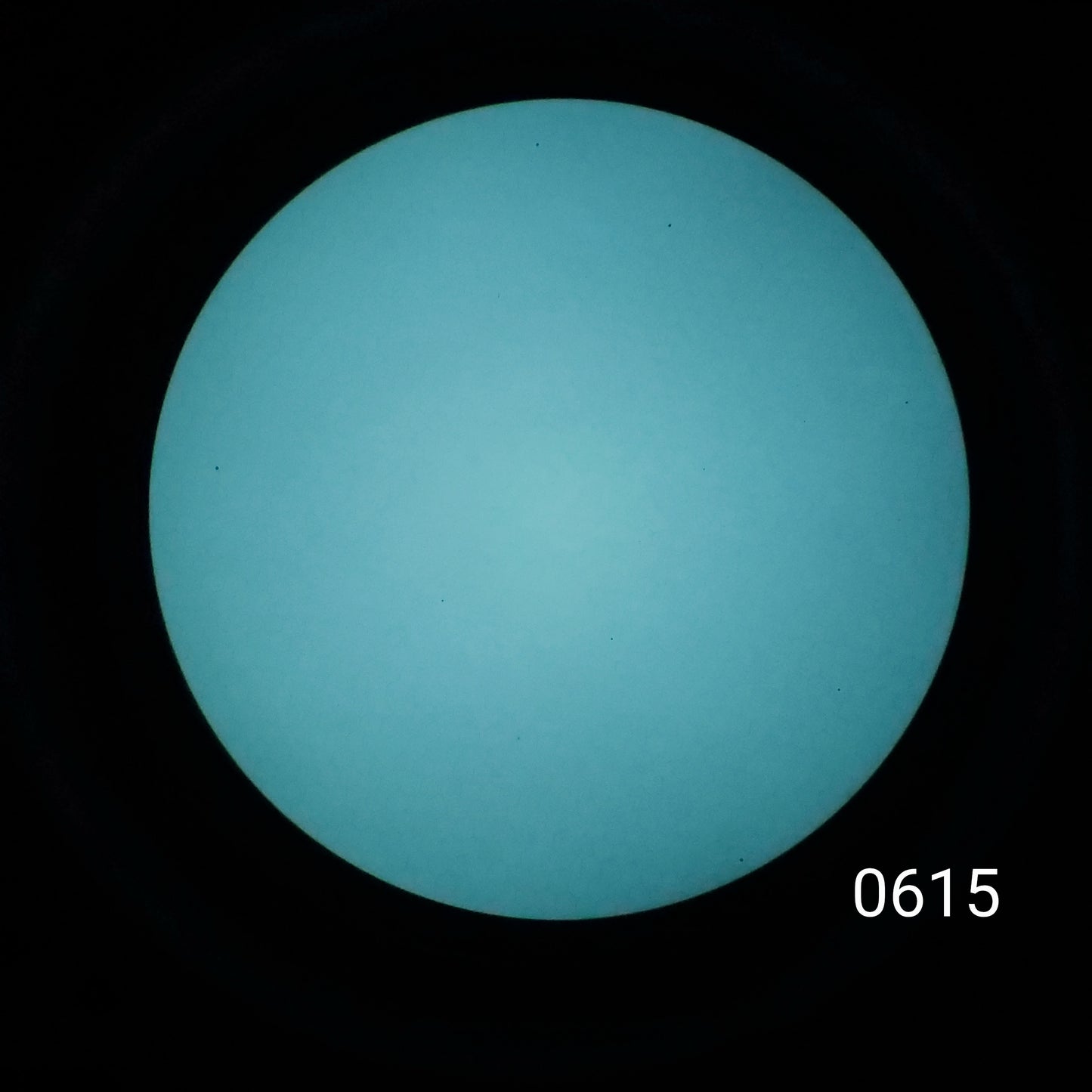

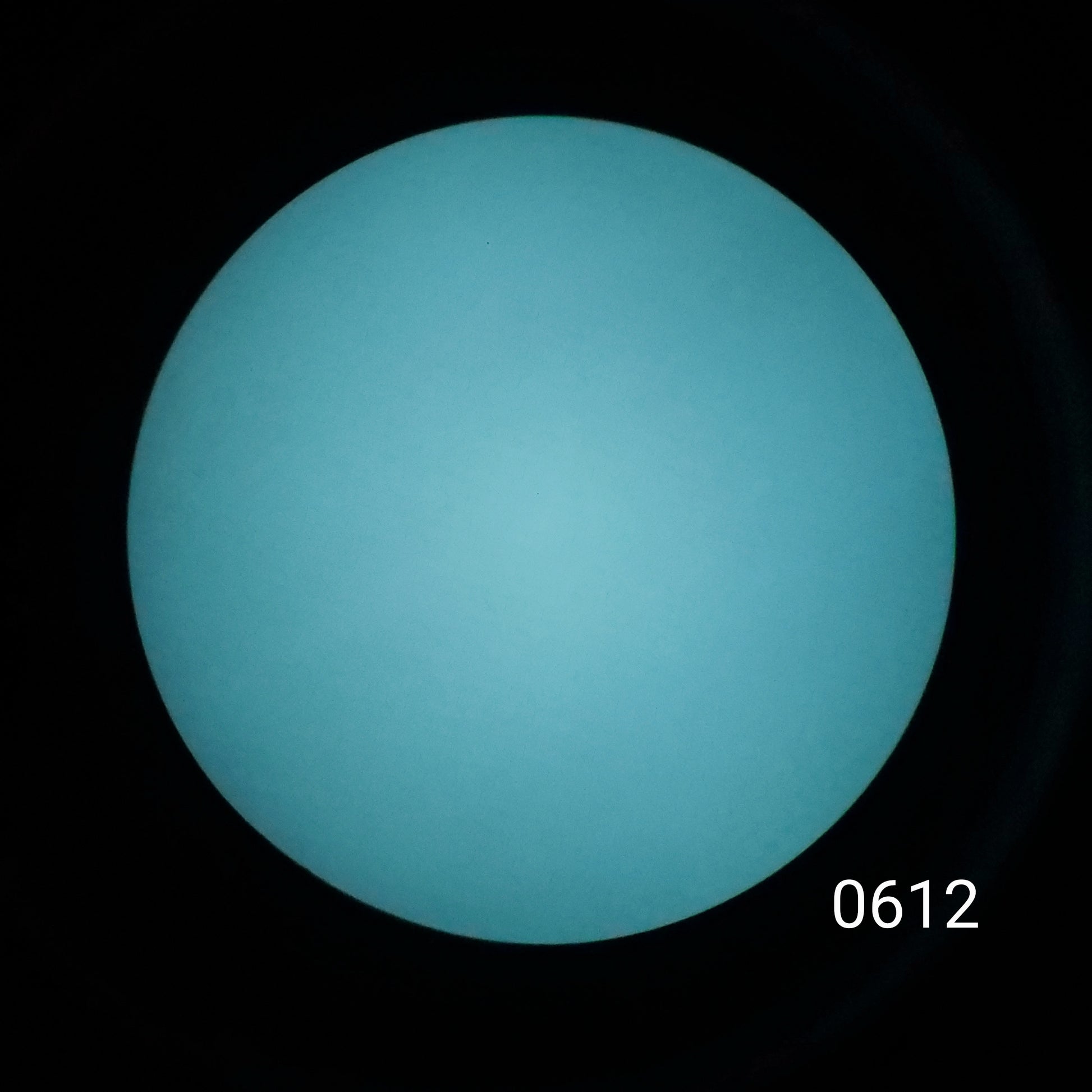

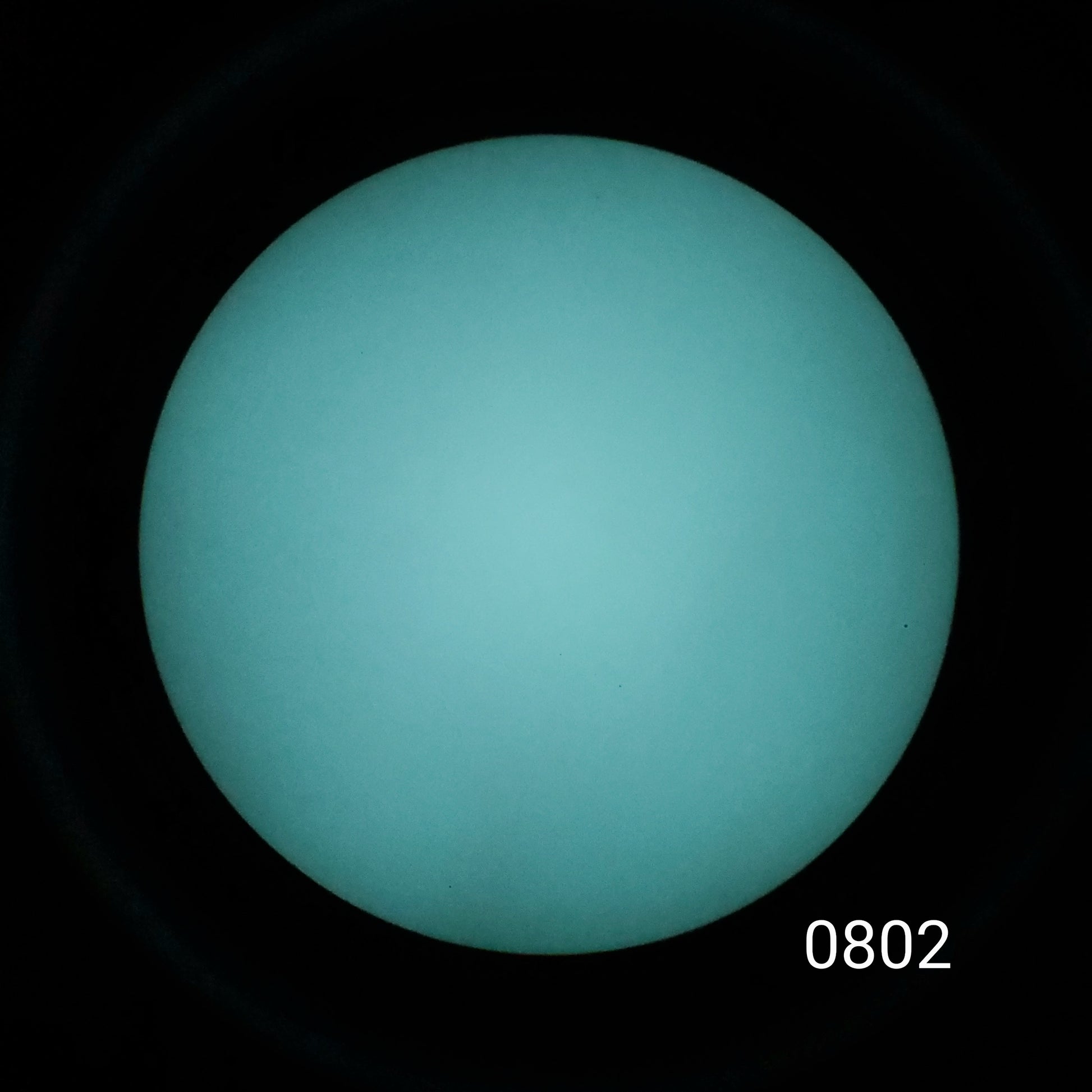

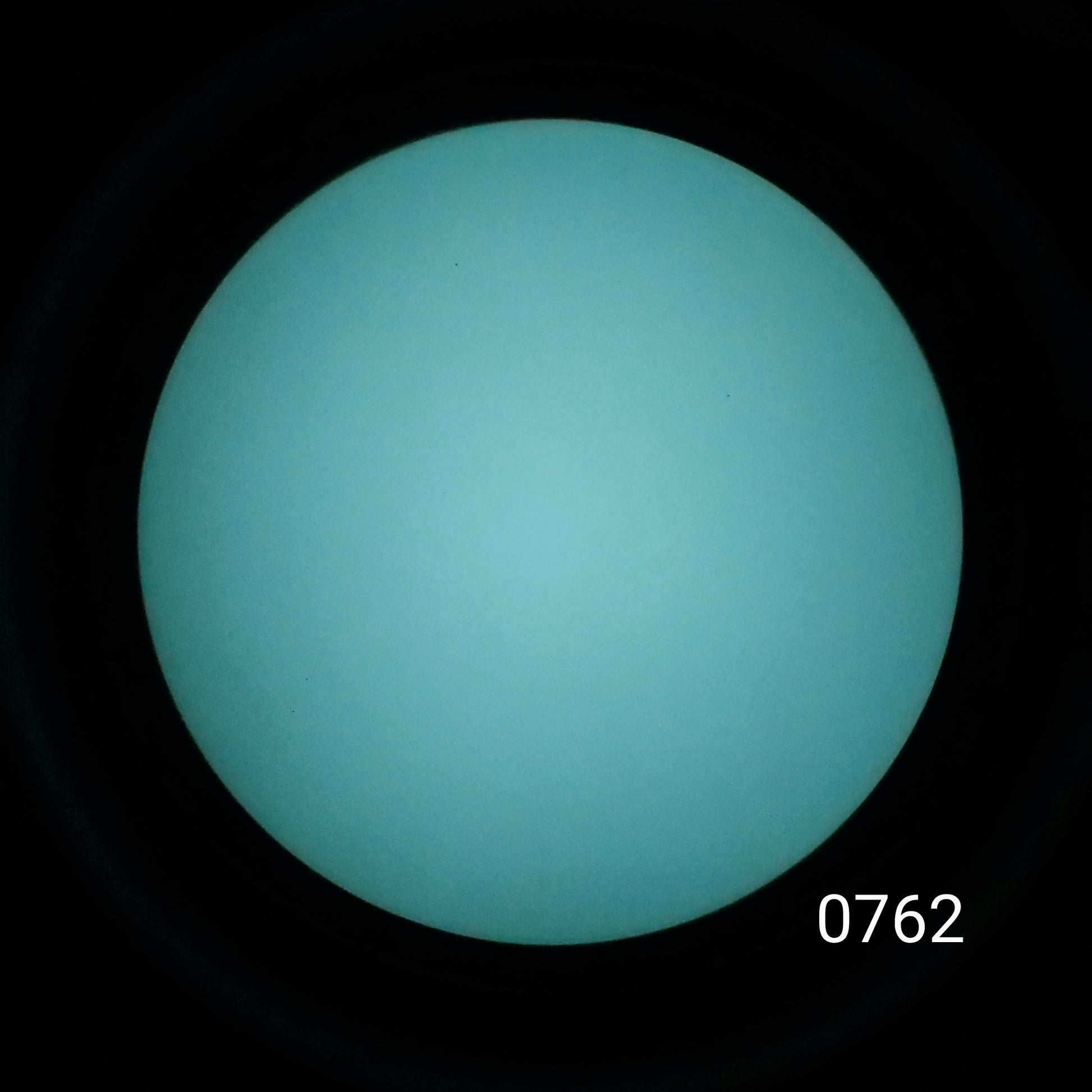

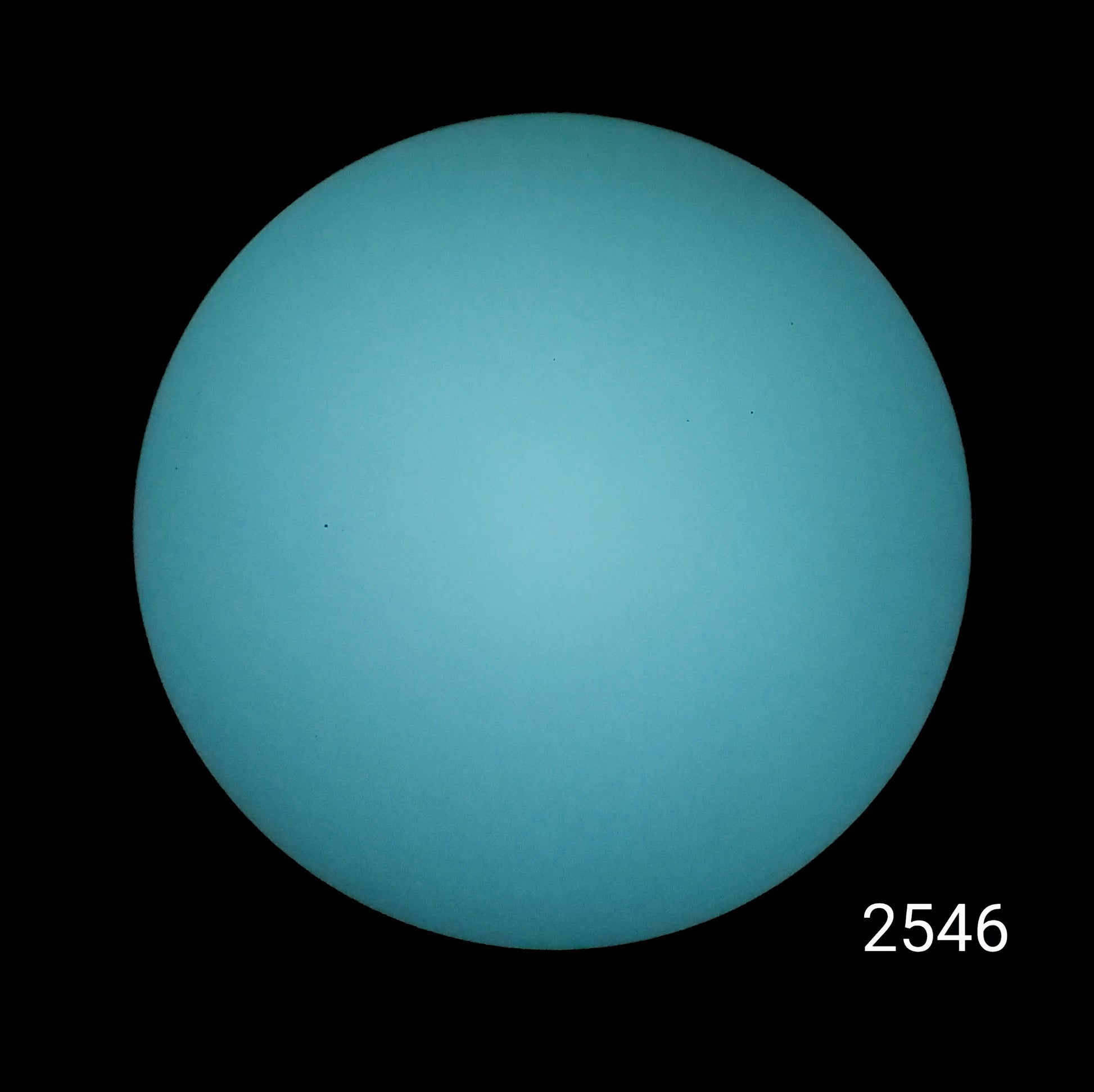

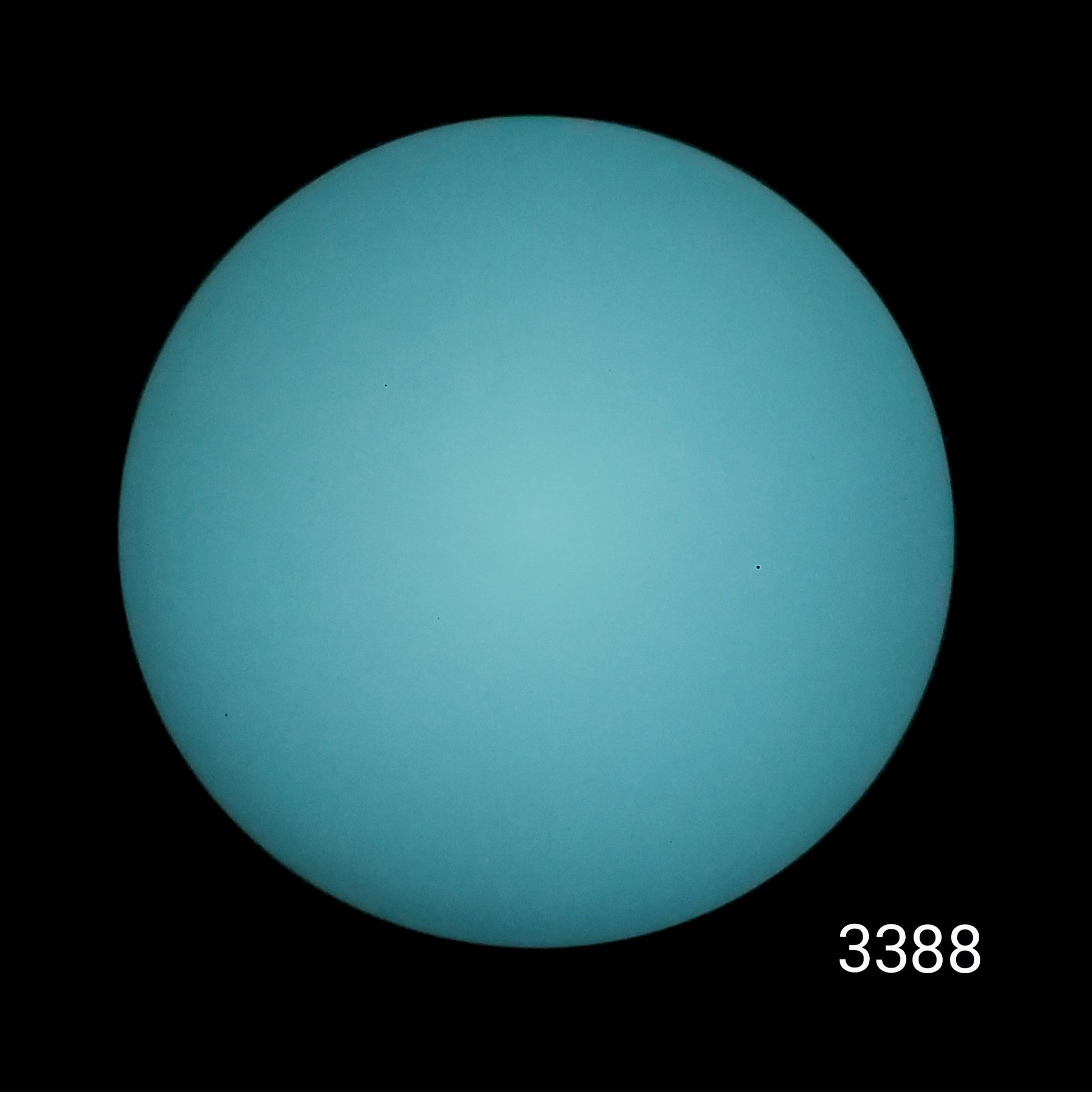

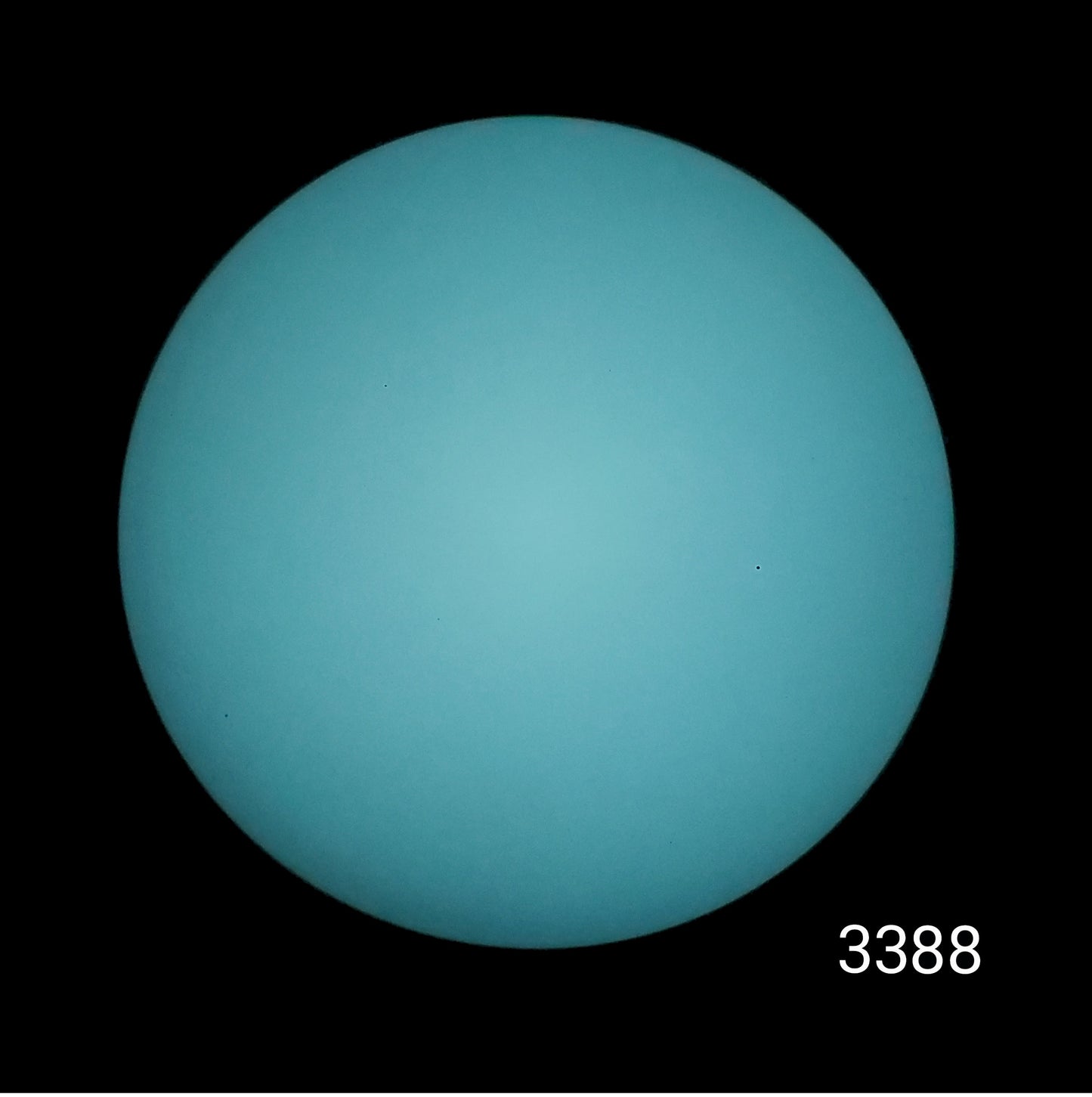

L3 Harris Unfilmed Image Intensifier Tube

L3 Harris 18/22UM mil-spec, Gen 3, unfilmed, white phosphor, autogated Image Intensifier tube. Provides improved contrast and low light performance over filmed Gen 3 tubes

Features

• 10 Year Manufacturer Warranty
• Adjustable gain
• Autogated
• Low Battery Indicator

• Waterproof

• Nitrogen Purged
• Infinity focus stop set
• Mil-spec coated lens
• Mil-Spec housing and electronics


Specs

Field of View: 40˚
Magnification: one power (1X)
Eye Relief: 25mm
Objective Lens: 27mm, f/1.2
Focus Range: 25cm to infinity
Power Source: 1 AA-Size Battery
Weight (w/o batteries): 10.8 ounces (Standard), 9.8 ounces (NL914C)
Size: 4.5"L x 2.5"W x 2.75"H

Standard Accessories: Operator’s Manual, AA Batteries, Demist Shield, Sacrificial Filter for Objective Lens, Neck Cord, Eye-Cup, and Light Filter Cap.

This system complies with MIL-PRF-49324(CR), MIL-PRF-49427(CR) and MIL-STD-810G.

 MPN: PVS14-13

10 Year Warranty
