NVD UL BNVD-SGC Ultra-Light Night Vision Binocular

Lead Time: 8-12 weeks

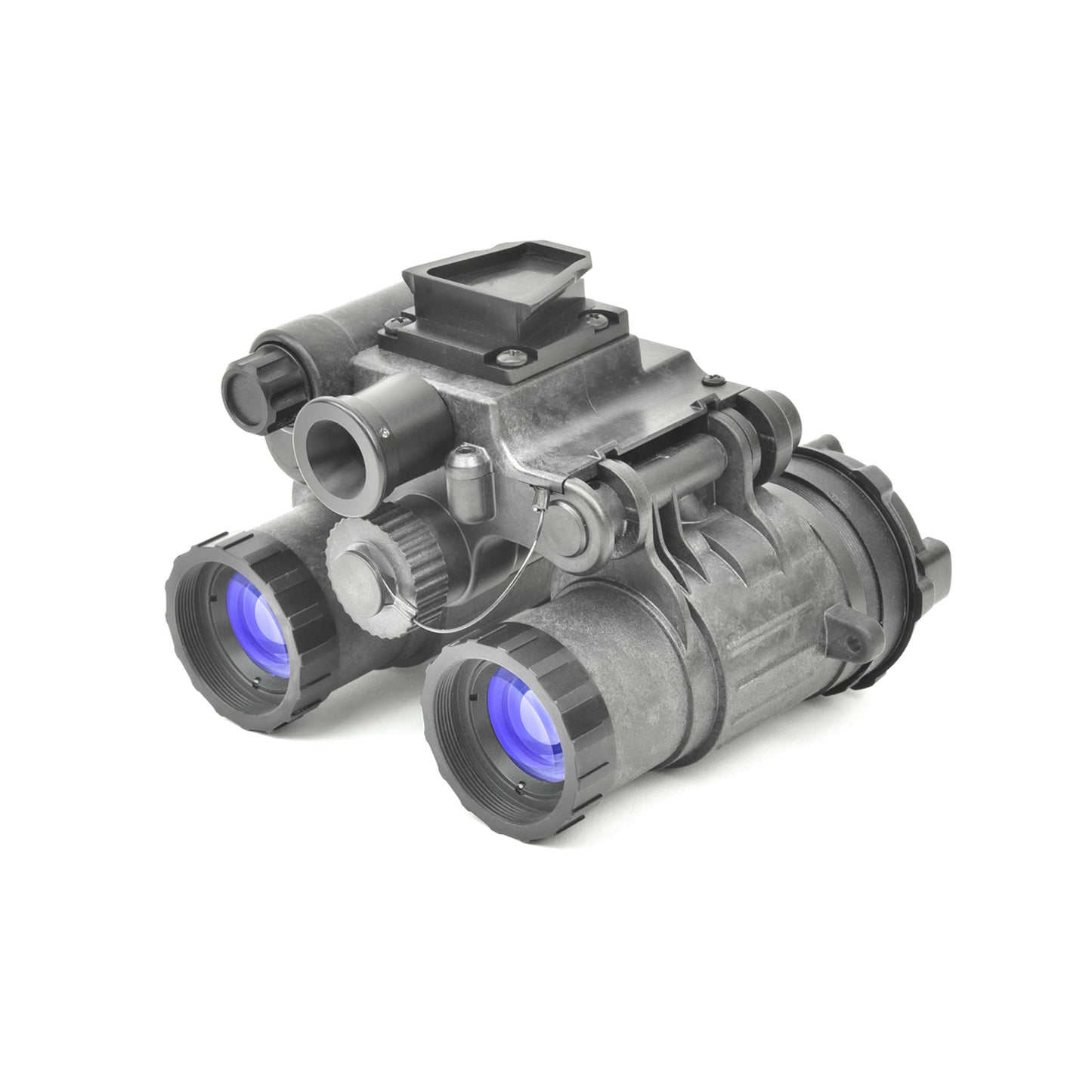

New Ultra-Light Binocular Night Vision Device – Single Gain Control integrates improved lightweight hybrid polymer/glass optics, optimized for both green (P43) and white (P45) phosphor image tubes. The improved optics reduce glare from distant bright light sources as well as increase contrast, significantly improving the viewed image. Overall, this offers higher performance than standard glass optics. Despite its Ultra Light weight, the UL BNVD-SGC has enhanced nearly every feature. This includes an improved Diopter Adjustment, a new rotary control switch, and a wider range Spot/Flood setting, providing the end-user with a more intuitive and dependable system. The UL BNVD-SGC is available with an optional battery pack, which holds 3 “AA” batteries for an additional 85+ hours of run time. The UL BNVD-SGC fully meets the latest release of MIL-STD-810H including 66-foot immersion while remaining lighter and more rugged than ever.

Adjustable Gain

The BNVD-SGC operates with a single combined power and gain control knob that controls both eyepieces simultaneously. Depending upon the amount of ambient light, the user can adjust the tube brightness (gain) lower to compensate for overly bright conditions or to increase the gain under extreme dark conditions.

Articulating with auto-shutoff

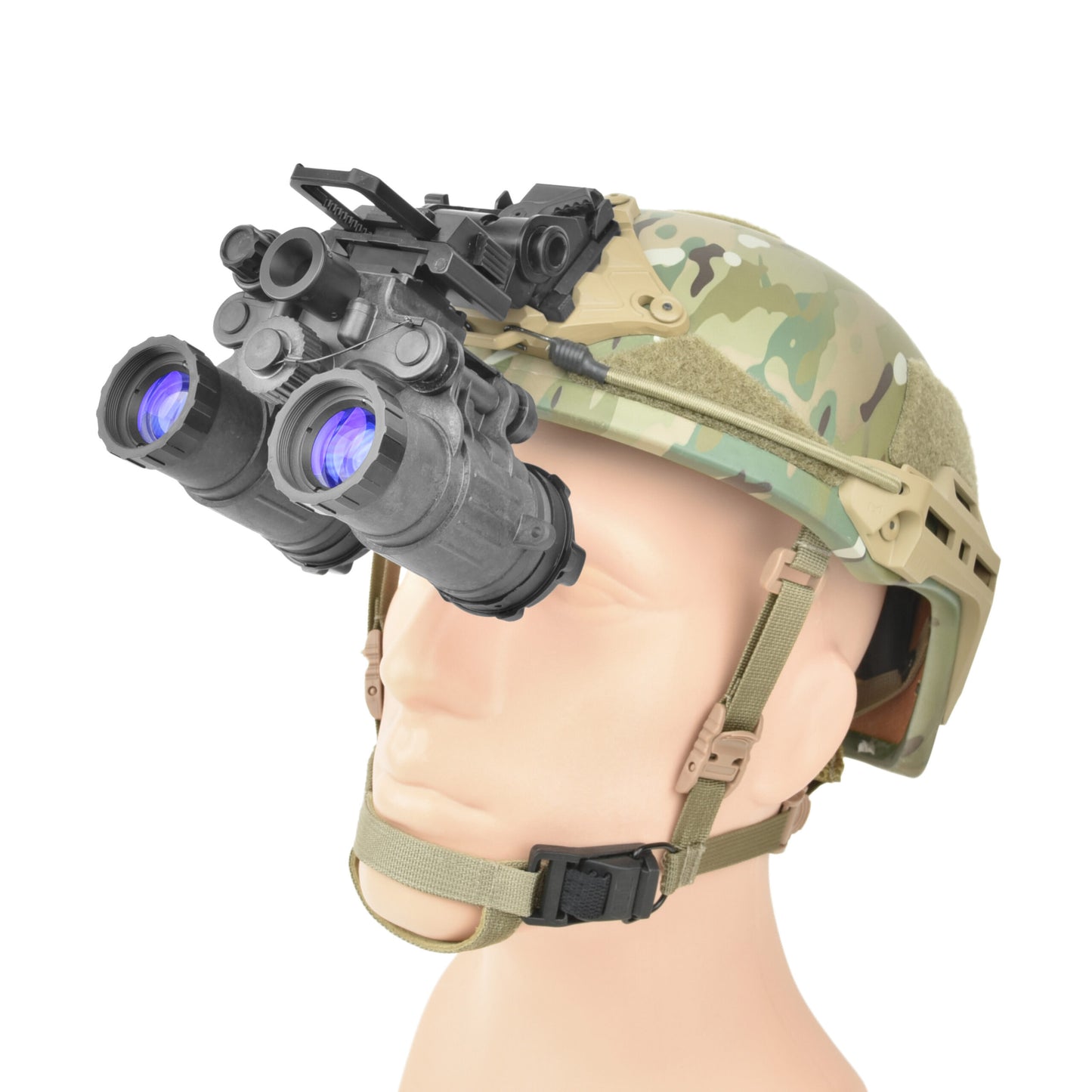

The BNVD-SGC can be used as a monocular by choosing which side you want to use as your night vision eye and rotate the other side/arm of the binocular up and out of the way. This enhanced capability allows the user to rotate either monocular channel away from their eye while leaving the other monocular channel in place. This provides the operational flexibility to use the BNVD-SGC as either a dual-eye or single-eye device. When used as a monocular, the user can operate the BNVD-SGC with an optic or thermal imaging device without sacrificing night-time situational awareness.

Durable and Ultra-Lightweight

Designed for durability, constructed with Carbon-Filled Molded ULTEM. Meets ALL MIL STD 810 Environmental QA Testing Standards, MIL-PRF-49324 (CR), and MIL-PRF49427 (CR). While weighing only 475 Grams (16.8oz). Equipped with RPO optics for minimum weight.

Image intesifier Tube

Elbit XLSH - The XLSH tube is thin-filmed and auto-gated Gen III image intensifier tube. The customer is able to choose green or white phosphor and minimum FOM requirements.

• SNR 21+ (norm 25~30)
• Center Resolution: >=64 (norm 64-72)
• EBI (max): <=2.5 (norm ~1)
• Halo (max): <=1.25 (norm ~0.8)

Norm: 1 spot

Elbit SLH - The SLH tube is thin-filmed and auto-gated Gen III image intensifier tube. The customer is able to choose green or white phosphor and minimum FOM requirements.

• Center Resolution: >=64 (norm 64-72)
• EBI (max): <=2.5 (norm ~1)
• Halo (max): <=1.25 (norm ~0.8)

Norm: 0 or 1 spot

Additional Features

• 10 Year Manufacturer Warranty
• Autogated
• Collimated
• Built-in IR illuminator with adjustable focus
• Flip-Up, Turn Off Setting

• Matched image intensifier tube
• Low Battery Indicator
• Waterproof

• Nitrogen Purged
• Mil-spec multi-coated lens
• Dovetail mounting interface

Specs

10 Year Manufacturer Warranty
