MAX14 | Articulating, All-Metal Night Vision Monocular Arm

In stock ready to ship

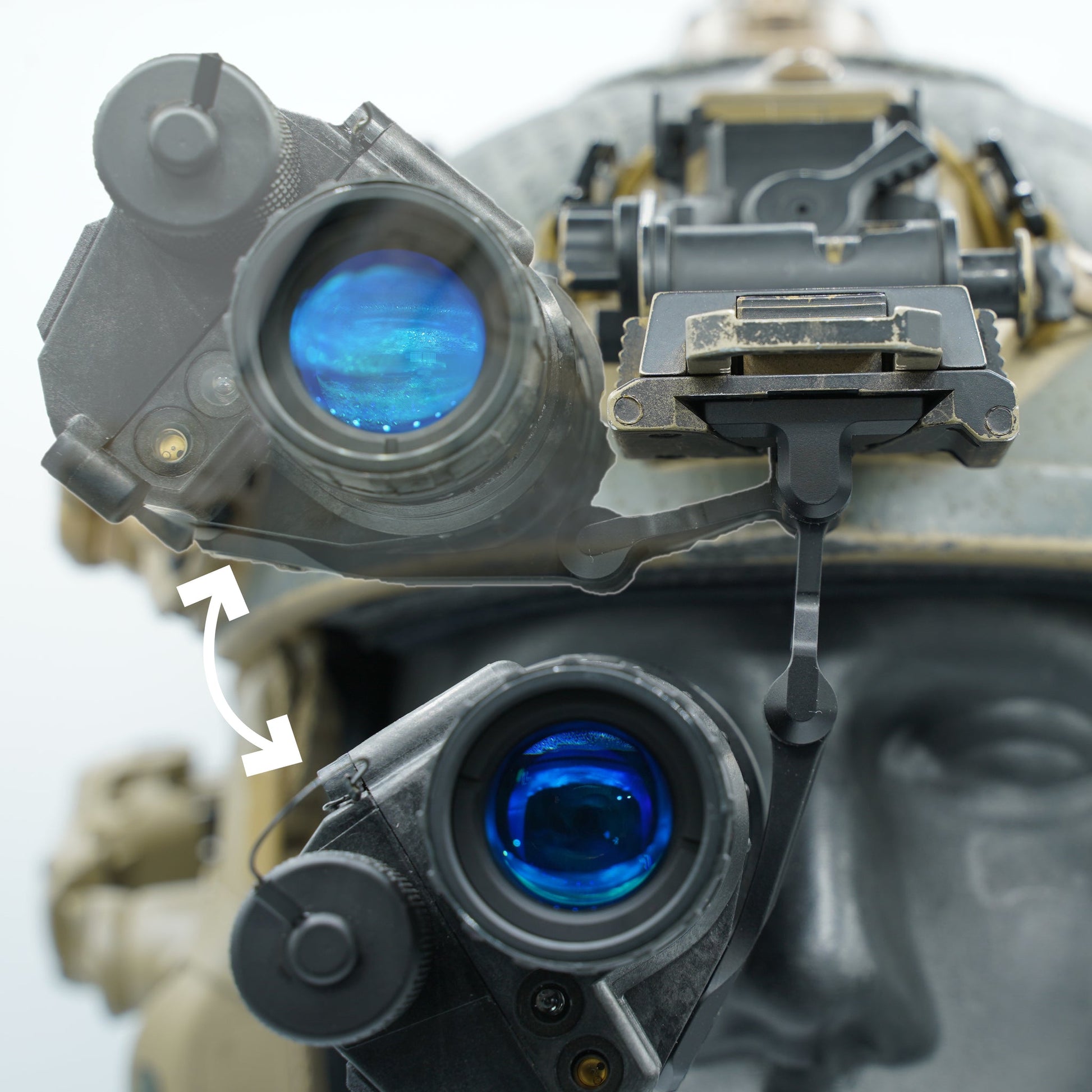

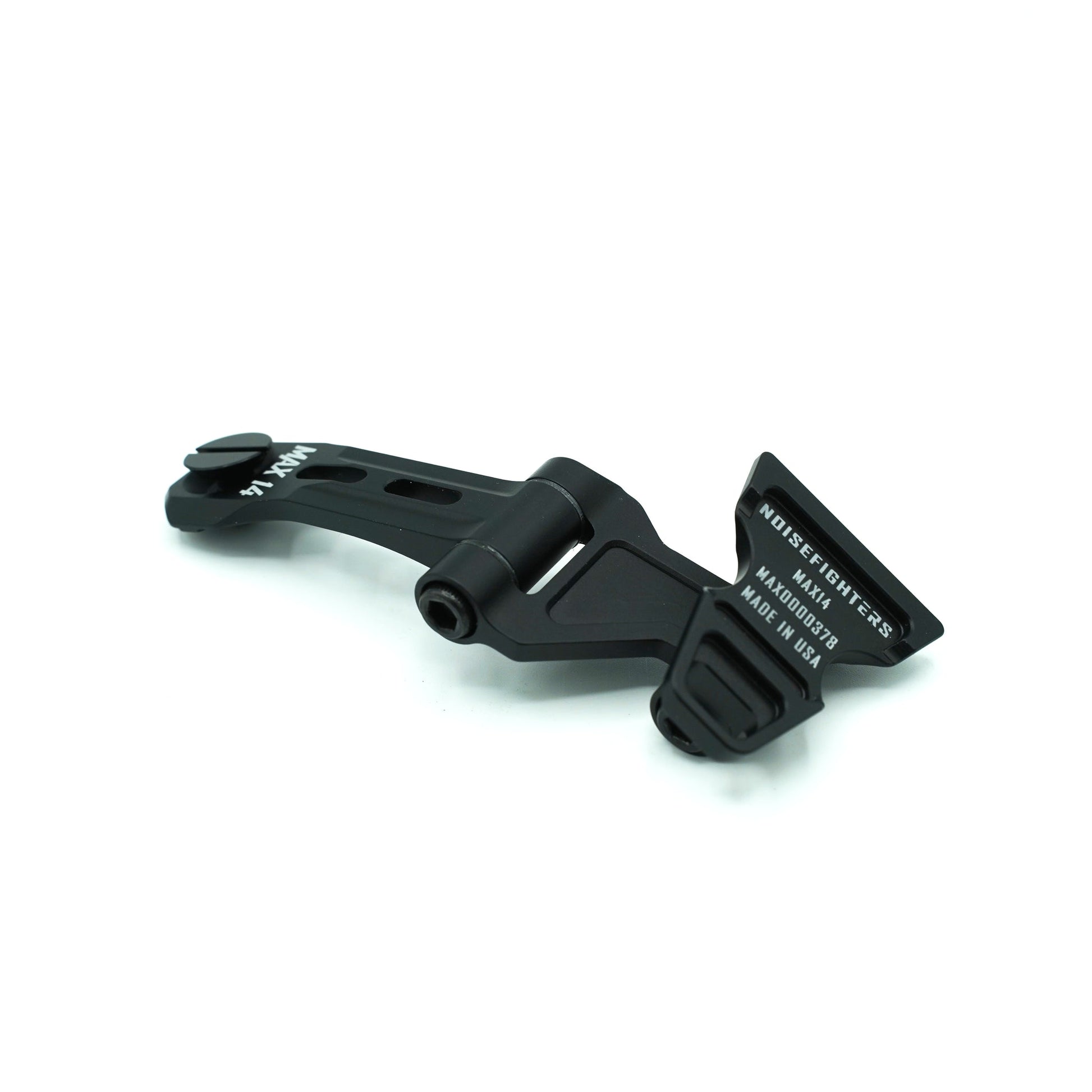

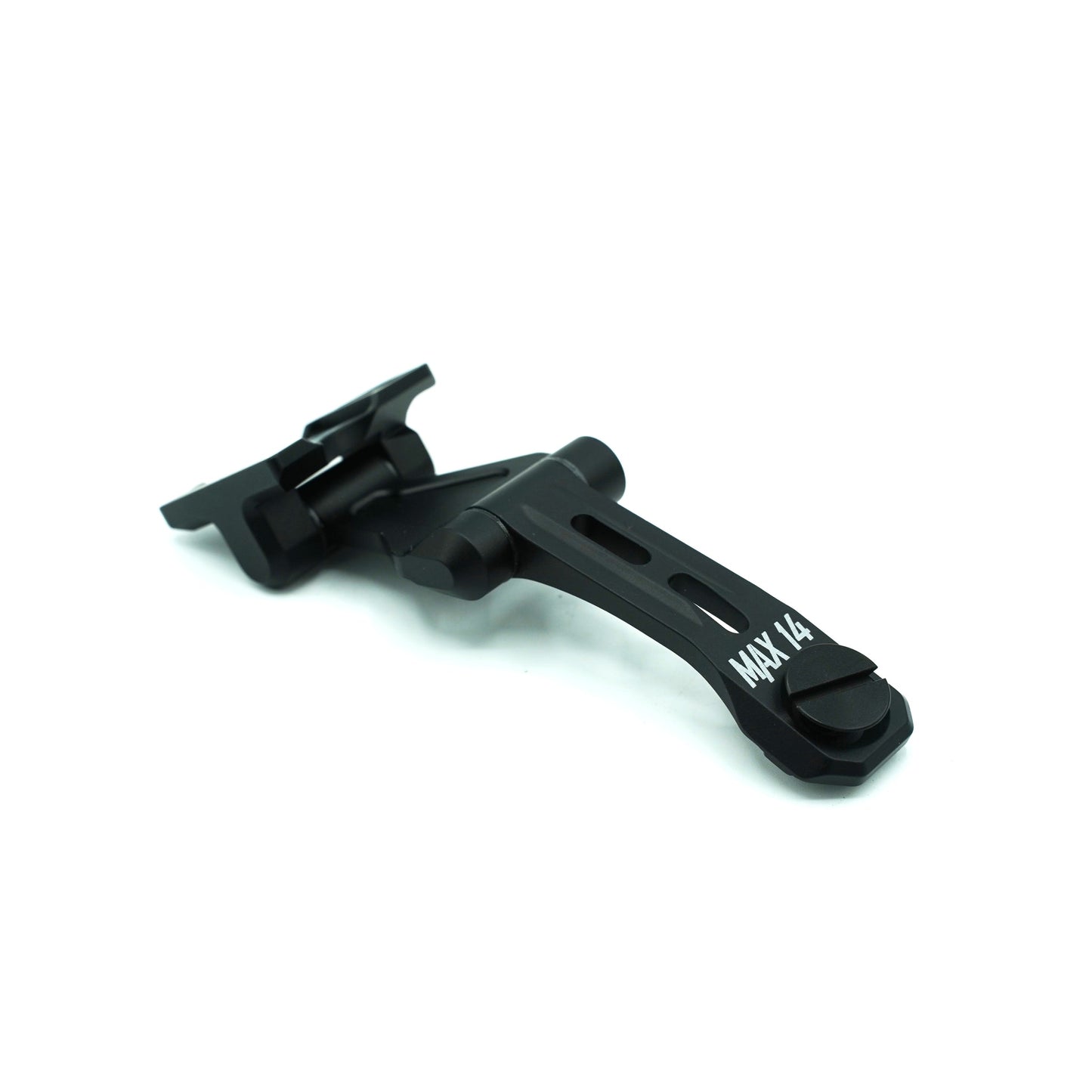

MAX14™ is a rigid, incredibly lightweight, and all-metal night vision J-arm for both the milspec AN/PVS-14 and the Nocturn Industries™ UANVM "TANTO" monocular. It includes a rotating knuckle which provides a tight stow against the helmet and also allows the monocular to be temporarily swung away from the eye. At 1.0 oz total, it weighs half as much as a polymer milspec J-Arm, yet its structure is composed entirely of the highest-performing 7075-T6 aluminum alloy for industry-leading durability.

An intuitive, friction-based mechanism allows users to swing their monocular in front of either the left or right eye and perfectly adjust for interpupillary distance, while a slight rearward sweep of the inner arm helps position the monocular eyepiece closer to one's eye and provides greater compatibility for those with larger helmets. A tether point is also featured on the rear to keep the entire system secure. Attach a monocular, snap the complete assembly into a dovetail-style helmet mount like the Wilcox® G24, and enjoy. Introducing the new industry standard in night vision monocular mounting.

US-made protective vinyl camouflage wraps, made by NOCORIUM, are available for purchase as an accessory and, in limited releases, attached to a MAX14 by the Noisefighters team. You can buy the wraps separately right here or add them as accessory to this product directly on this page.

A no-questions-asked, transferable lifetime warranty is included. The Noisefighters MAX14 is proudly made and assembled in the U.S.A. and was designed by a Marine Corps combat veteran of Iraq and Afghanistan.

CONSIDERATIONS TO ACCOUNT FOR WHEN USING THIS PRODUCT:

This arm is NOT COMPATIBLE with bayonet-style night vision helmet mounts. You MUST HAVE a dovetail-type night vision helmet mount.

No auto-shutoff system is integrated. Users must manually turn off the monocular when articulating or flipping up and stowing equipment on top of the helmet.

SPECIFICATIONS:

COMPATIBLE WITH: MILSPEC AN/PVS-14 MONOCULAR, NOCTURN INDUSTRIES UANVM "TANTO" (A SEPARATE ADAPTER IS INCLUDED IN ORDER TO FIT THIS DEVICE), PHOTONIS VYPER-14 CHASSIS FOR AN/PVS-14 MONOCULAR, AB NIGHT VISION RVM14 (DOES NOT FULLY LOCK INTO PLACE BUT IS TECHNICALLY USABLE; WE ARE WORKING ON AN ADAPTER), AB NIGHT VISION MOD3 MONOCULAR (AUTOGAIN VERSION ONLY), KNIGHT’S ARMAMENT M-14 ALLOY CHASSIS FOR AN/PVS-14 MONOCULAR

HELMET MOUNTING COMPATIBILITY: DOVETAIL

INTERPUPILLARY DISTANCE (IPD) COMPATIBILITY: 55 - 75mm

TOTAL ASSEMBLED WEIGHT OF THIS PRODUCT: 1.0 OZ / 28 g

DIMENSIONS: 3.5 x 1 x 1.25"

COMES WITH: ARM, UANVM "TANTO" ADAPTER, TITANIUM MULTITOOL

No question -asked, transferable lifetime warranty
