NVD UL BNVD-SG Ultra-Light Night Vision Binocular

Lead Time: 14-20 weeks, 20% initial payment option available, please contact us for more details

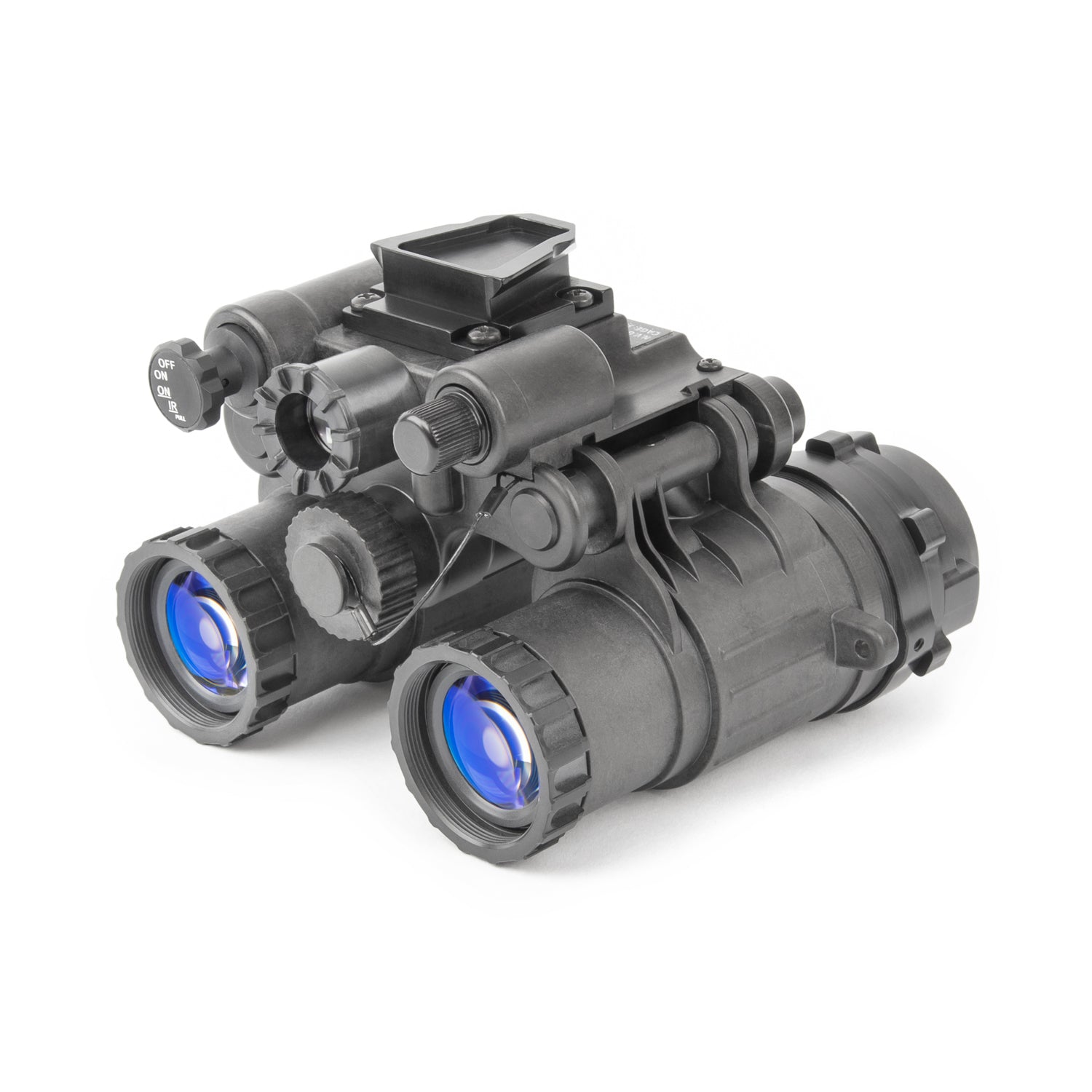

The NVD UL BNVD-SG Night Vision Binocular is ultra-lightweight, rugged, and packed with features.

Adjustable Gain

The BNVD-SG operates with a single gain control knob that controls both eyepieces simultaneously. Depending upon the amount of ambient light, the user can adjust the tube brightness (gain) lower to compensate for overly bright conditions or to increase the gain under extreme dark conditions.

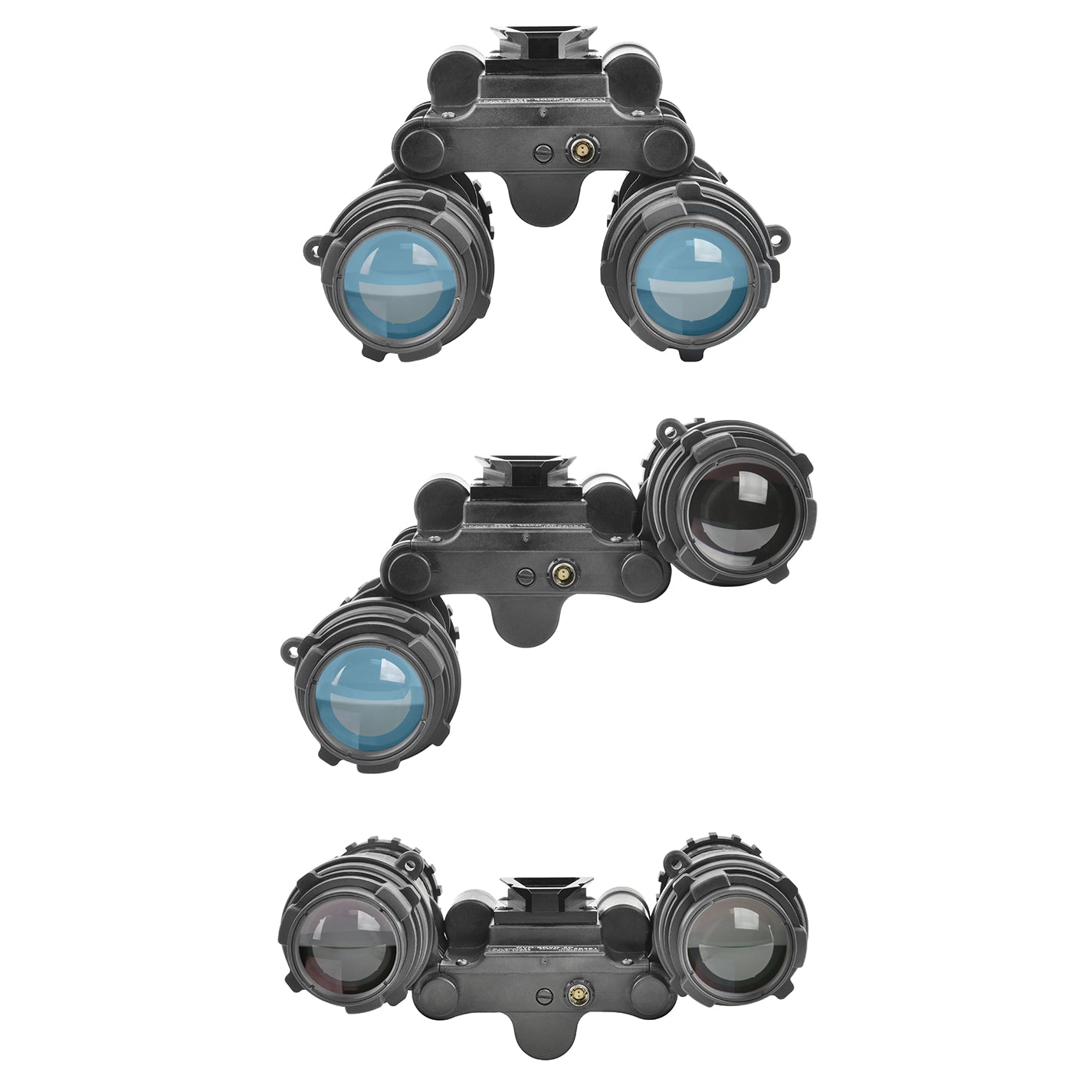

Articulating with auto-shutoff

The BNVD-SG can be used as a monocular by choosing which side you want to use as your night vision eye and rotate the other side/arm of the binocular up and out of the way. This enhanced capability allows the user to rotate either monocular channel away from their eye while leaving the other monocular channel in place. This provides the operational flexibility to use the BNVD-SG as either a dual-eye or single-eye device. When used as a monocular, the user can operate the BNVD-SG with weapon-mounted sighting equipment or thermal imaging device without sacrificing night-time situational awareness.

Durable and Ultra-Lightweight

Designed for durability, constructed with Carbon-Filled Molded ULTEM. Meets ALL MIL STD 810 Environmental QA Testing Standards, MIL-PRF-49324 (CR), and MIL-PRF49427 (CR). While weighing only 475 Grams (16.8oz). Equipped with RPO optics for minimum weight.

Image intesifier Tube

Elbit SLH - The SLH tube is thin-filmed and auto-gated Gen III image intensifier tube. The customer is able to choose green or white phosphor and minimum FOM requirements.

• Center Resolution: >=64 (norm 64-72)
• EBI (max): <=2.5 (norm ~1)
• Halo (max): <=1.25 (norm ~0.7)

Norm: 0 or 1 spot

Photonis ECHO/4G- Featuring Highly advanced Gen 2 hybrid photocathode and ultrafast autogating. Best suited for urban areas and environments with ambient light.

• Echo: Min 1800 FOM, Min 24 SNR, Min 57 lp/mm
• 4G (4G INTENS): Min 2000 FOM, Min 28 SNR, Min 64 lp/mm

L3Harris Unfilmed - Same image intensifiers adopted by USSOCOM. Autogated, Gen 3, white phosphor, Unfilmed tubes offer greater low light performance over filmed Gen 3 tubes. The customer is able to choose the minimum FOM requirements.

• Center Resolution: >=64 (norm 64-72)
• EBI (max): <=2.5 (norm ~0.7)
• Halo (max): <=1.0 (norm ~0.7)

Norm: 0 or 1 spot

Additional Features

• 10 Year Manufacturer Warranty
• Autogated
• Collimated
• Built-in IR illuminator with adjustable focus
• Flip-Up, Turn Off Setting

• Matched image intensifier tube
• Low Battery Indicator
• Waterproof

• Nitrogen Purged
• Mil-spec multi-coated lens
• Dovetail mounting interface

Specs

10 Year Manufacturer Warranty
