L3Harris BNVD-SG | Unfilmed White Phosphor | Hand Select

$9,495.00
$9,495.00
Sale Sold out
Shipping calculated at checkout.

In Stock Ready to ship

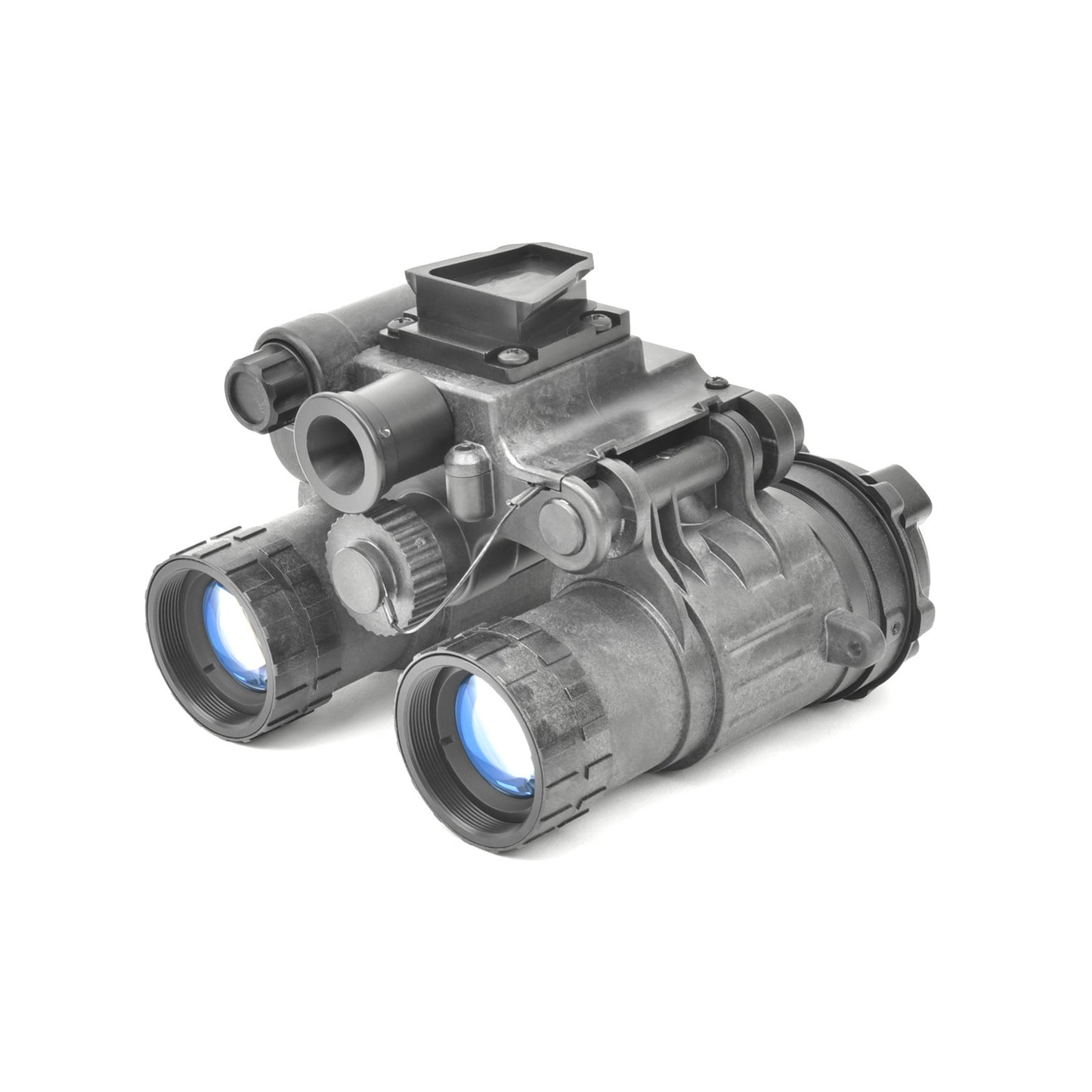

The NVD BNVD-SG Night Vision Binocular is lightweight, rugged, and packed with features. Features high-performance Gen-3 autogated image intensifier tubes

Spec Key

  • SNR = Signal to noise ratio
  • RES = Resolution (lp/mm)
  • EBI = Equivalent Background Illumination
  • Halo = Halo (mm)
  • LG = Luminous Gain (2x10-6 fc K)
  • PS = Photocathode Sensitivity (2856K)
  • FOM = Figure of Merit (Resolution * SNR)

Adjustable Gain

The BNVD-SG operates with a single gain control knob that controls both eyepieces simultaneously. Depending upon the amount of ambient light, the user can adjust the tube brightness (gain) lower to compensate for overly bright conditions or to increase the gain under extreme dark conditions.

Articulating with auto-shutoff

The BNVD-SG can be used as a monocular by choosing which side you want to use as your night vision eye and rotate the other side/arm of the binocular up and out of the way. This enhanced capability allows the user to rotate either monocular channel away from their eye while leaving the other monocular channel in place. This provides the operational flexibility to use the BNVD-SG as either a dual-eye or single-eye device. When used as a monocular, the user can operate the BNVD-SG with weapon-mounted sighting equipment or thermal imaging device without sacrificing night-time situational awareness.

Durable and Lightweight

Designed for durability, constructed with Carbon-Filled Molded ULTEM. Meets ALL MIL STD 810 Environmental QA Testing Standards, MIL-PRF-49324 (CR), and MIL-PRF49427 (CR). While still lighter than the AN/PVS-7 single tube goggle

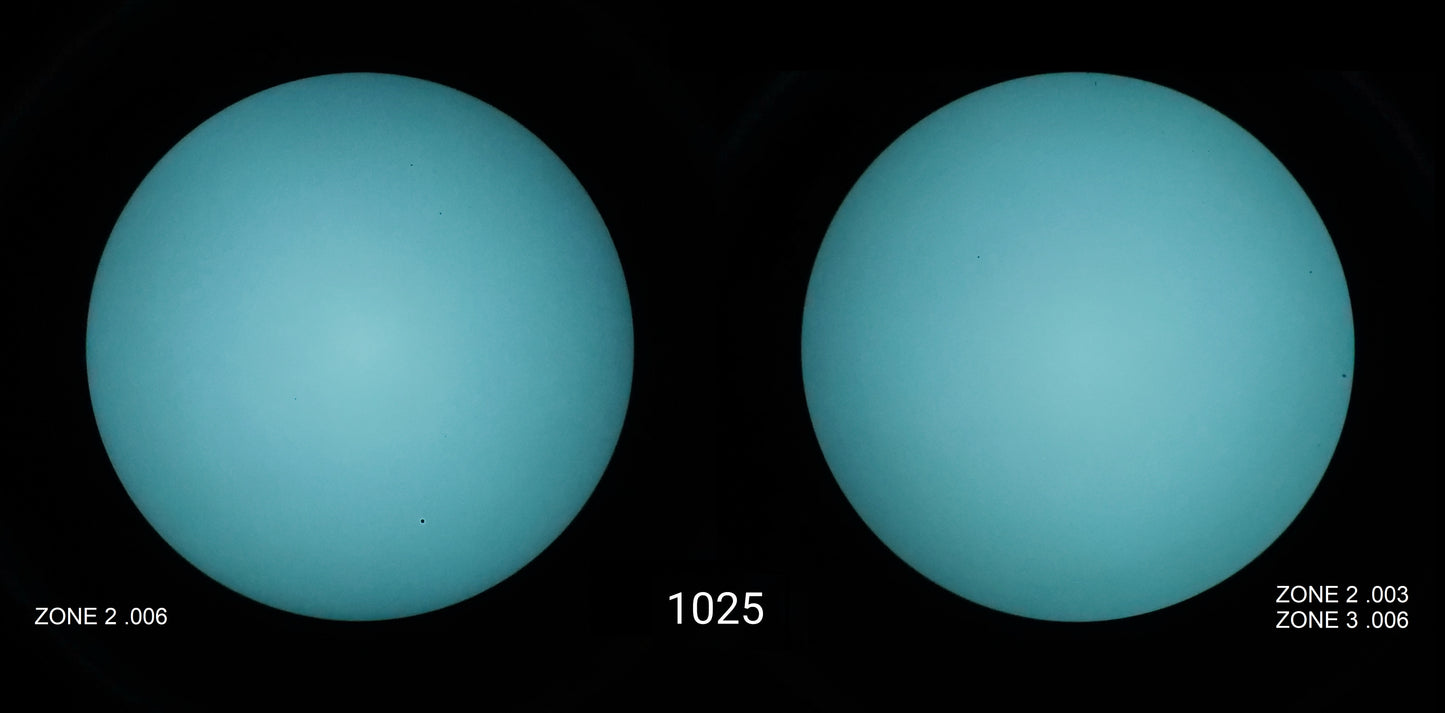

    L3 Harris Unfilmed Image Intensifier Tube

    L3 Harris mil-spec, Gen 3, unfilmed, white phosphor for superior performance over filmed tubes

    Additional Features

    • 10 Year Manufacturer Warranty
    • Autogated
    • Collimated
    • Built-in IR illuminator with adjustable focus
    • Flip-Up, Turn Off Setting
    • Matched image intensifier tube
    • Low Battery Indicator
    • Waterproof
    • Nitrogen Purged
    • Mil-spec multi-coated lens

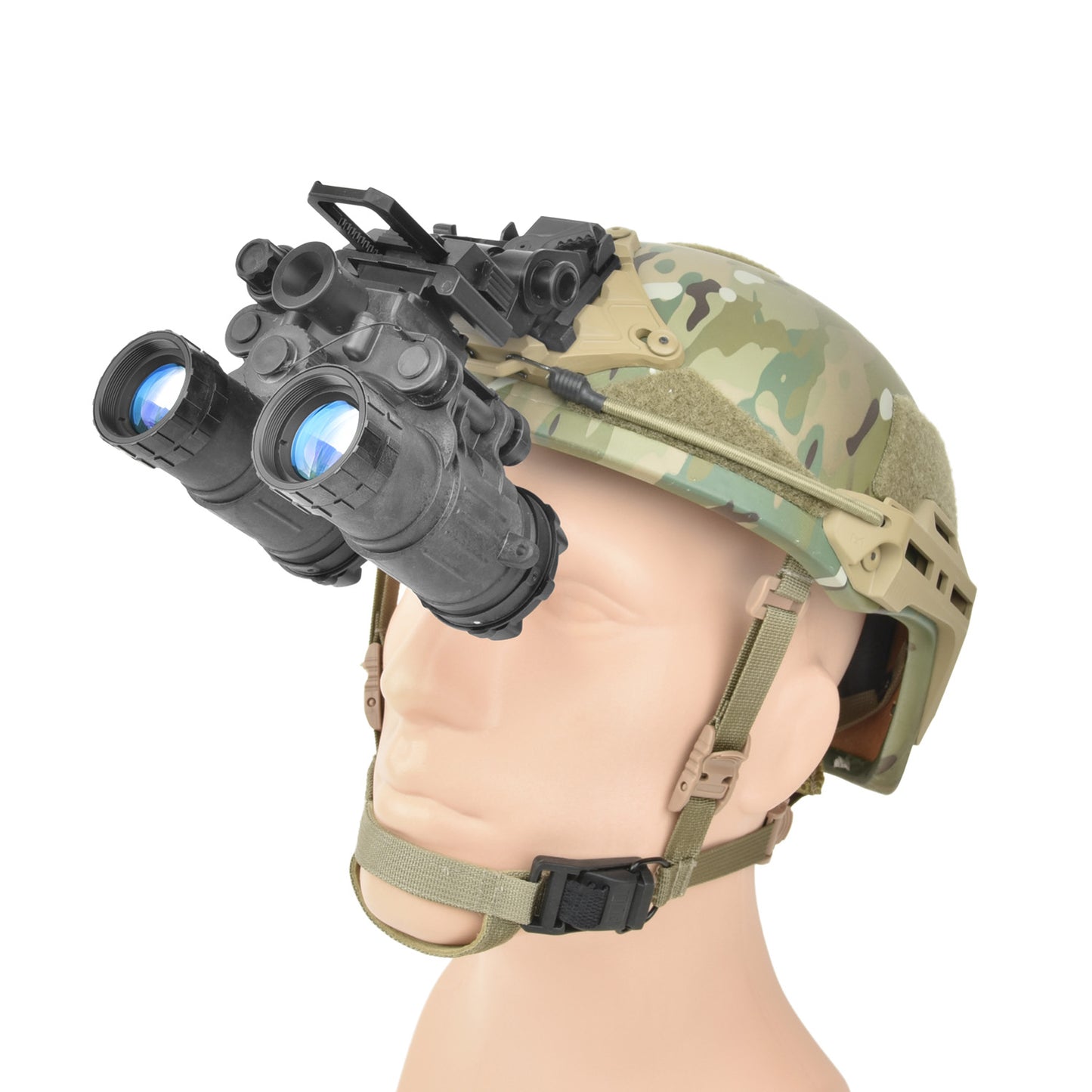

    • Dovetail mounting interface

    Specs

    Field of View: 40°
    Magnification: 1X
    Diopter Adjustment: -6 to +2 Diopters
    Interpupillary Adjustment: 51mm to 76mm
    Submersible: 66 feet for 3 hours
    Focus Range: 9.8" to Infinity
    Power Source: 1 AA-Size Battery
    Operation Time: 20+ hours (Alkaline), 40+ hours (Lithium)
    Weight (w/o batteries): 560 g (19.8 oz)
    Size: 4.3"L x 4.2"W x 3.3"H

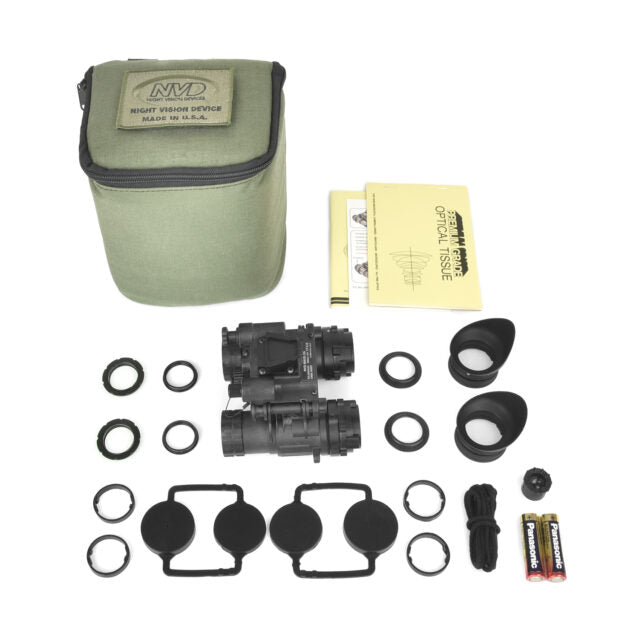

    Accessories

    Carry Case, AA Batteries (2), Operator’s Manual, Neckcord, Retaining Lens Covers, Eyecups, Lens Tissue, Demist Shields, Lightweight Sacrificial Windows, IR Flood/Spot Lens Assembly, Operator’s Card, and Dovetail Mounting Adapter.

    Optional Battery pack for 50-60 hours of continual use for extended missions, will require power port option to be selected

    10 Year Manufacturer Warranty
